Disjuntores

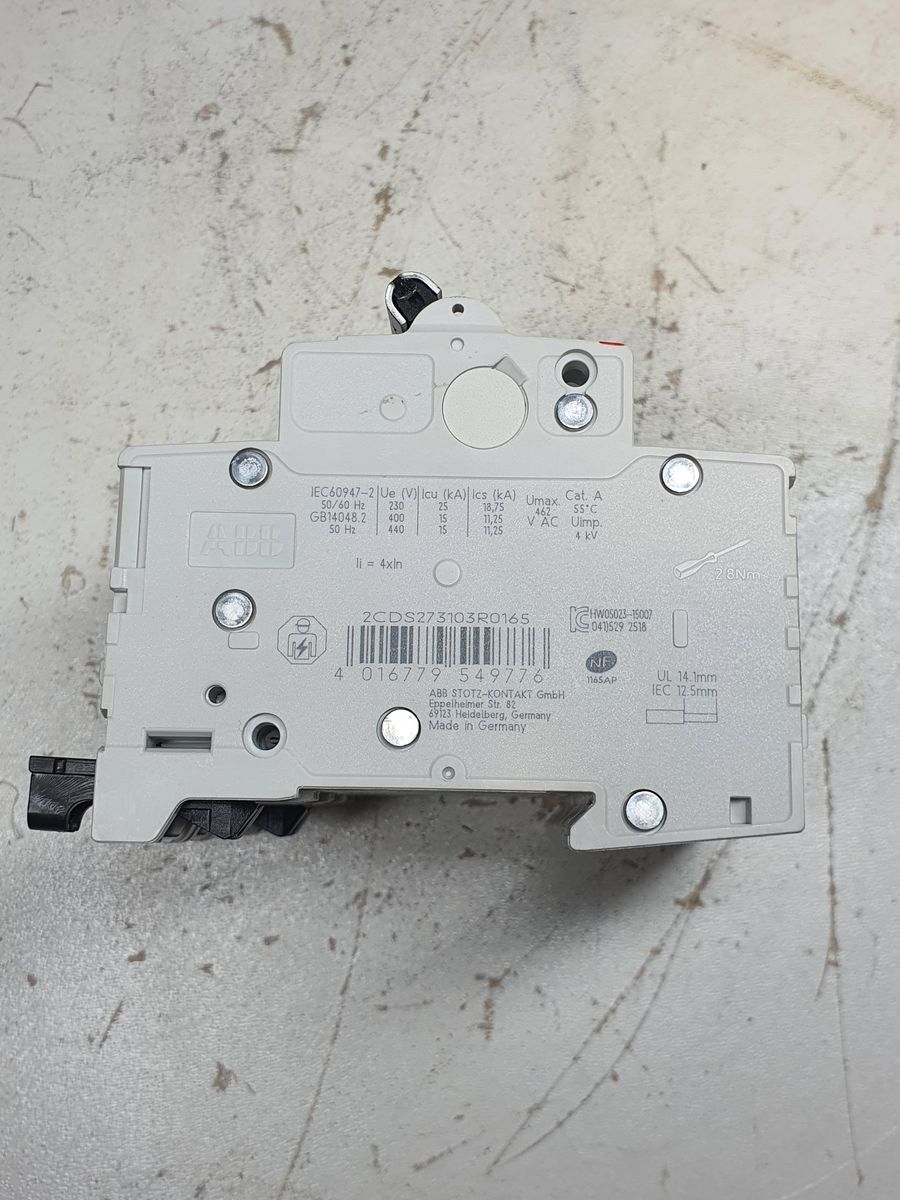

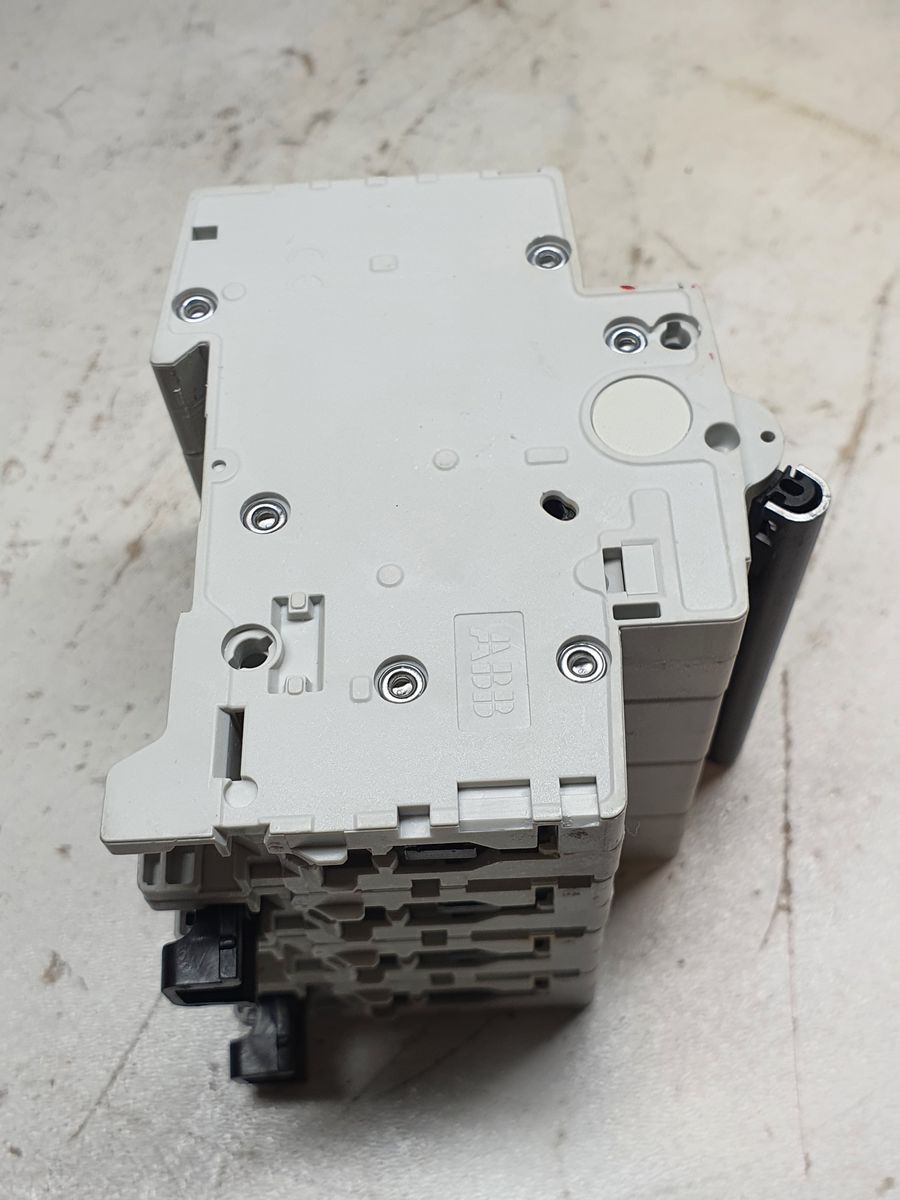

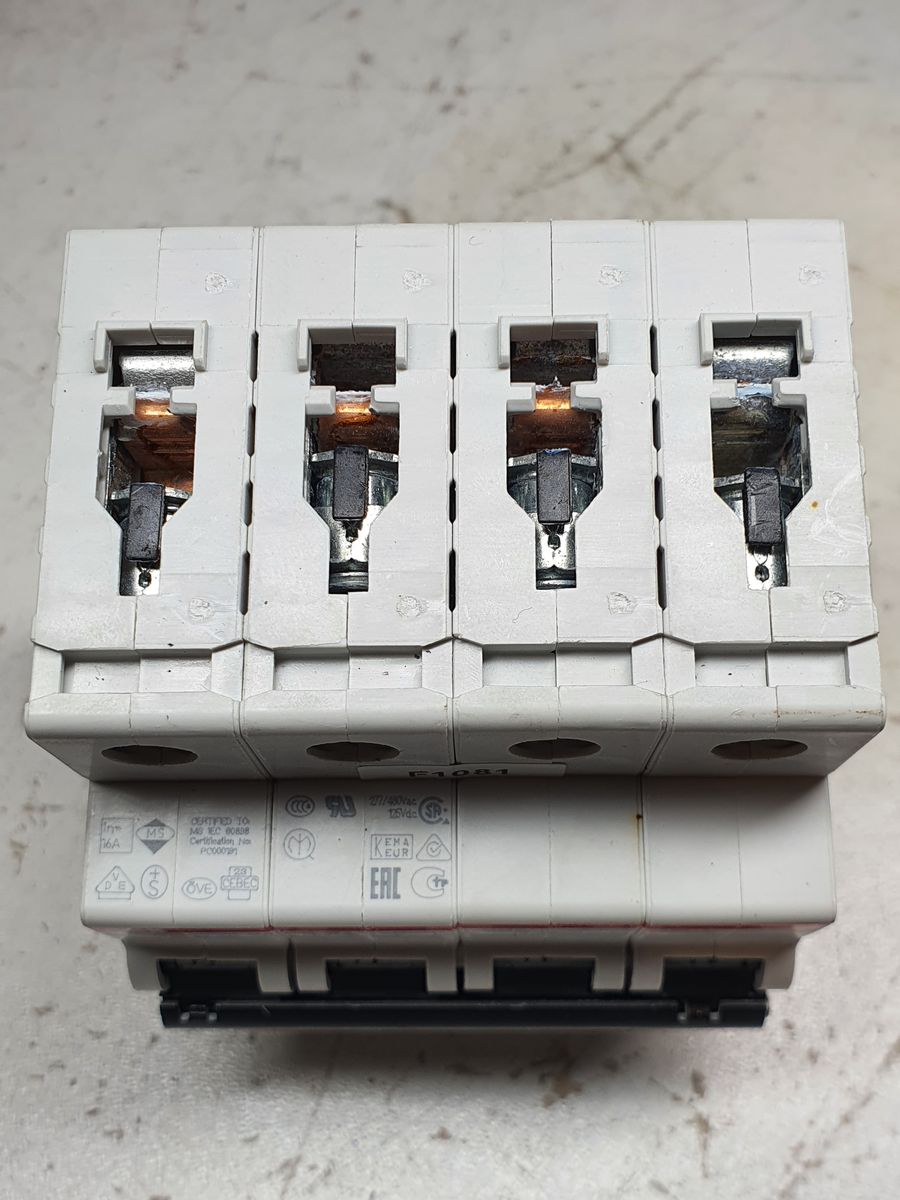

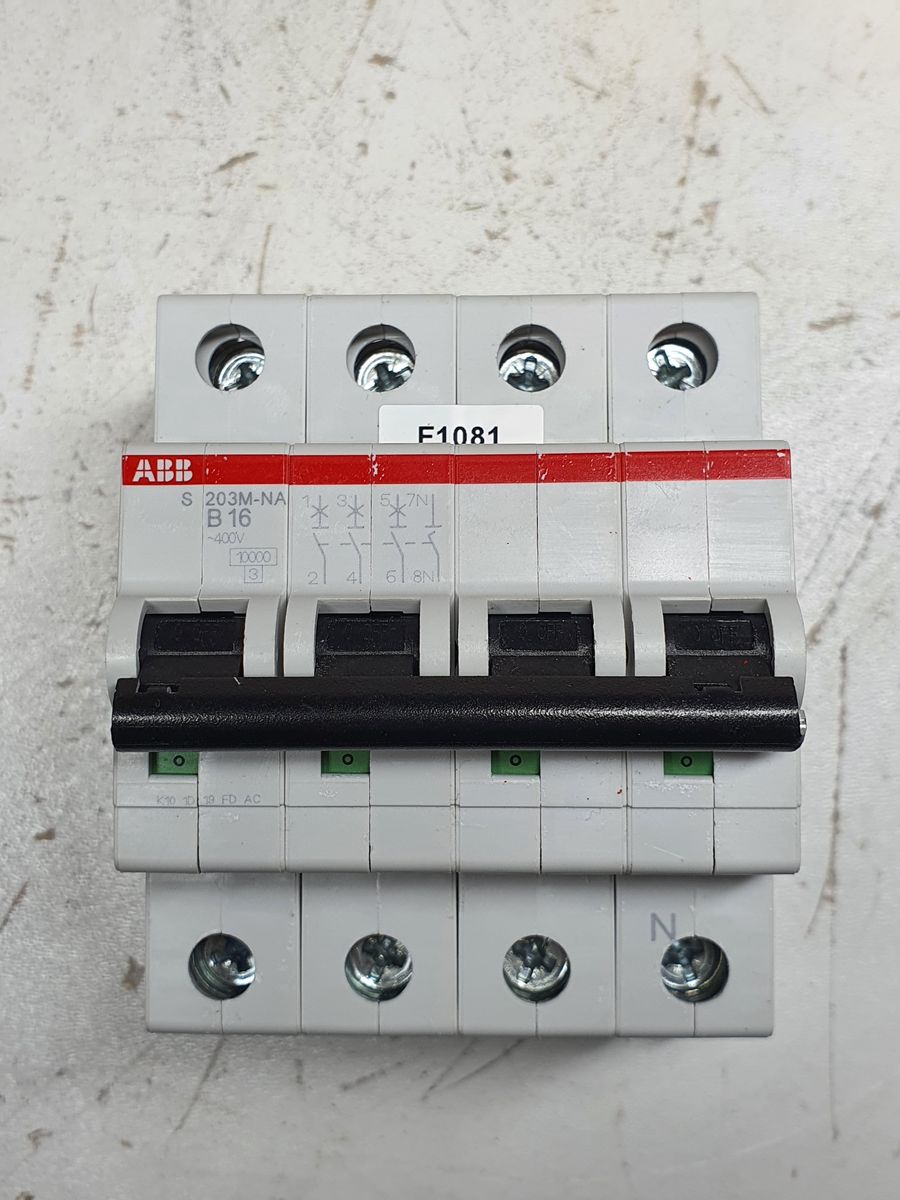

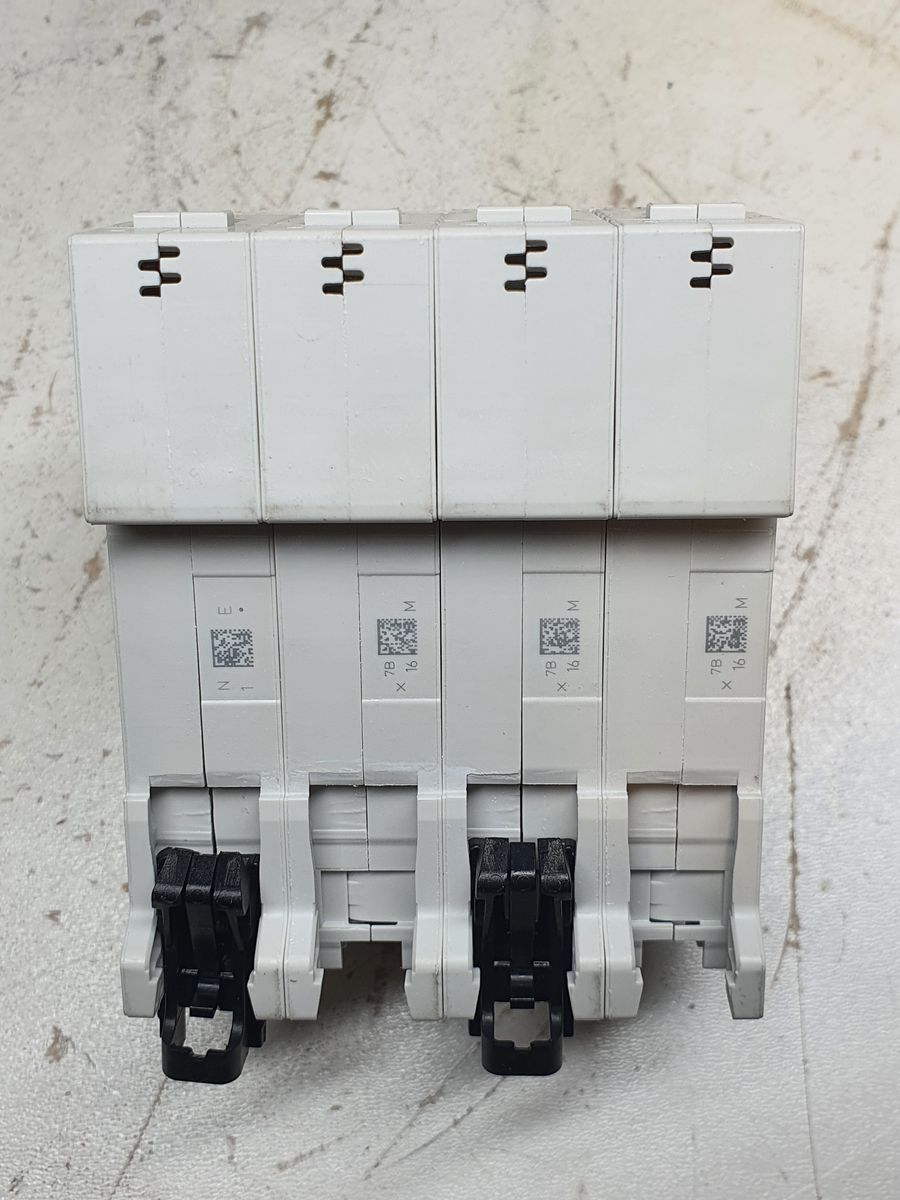

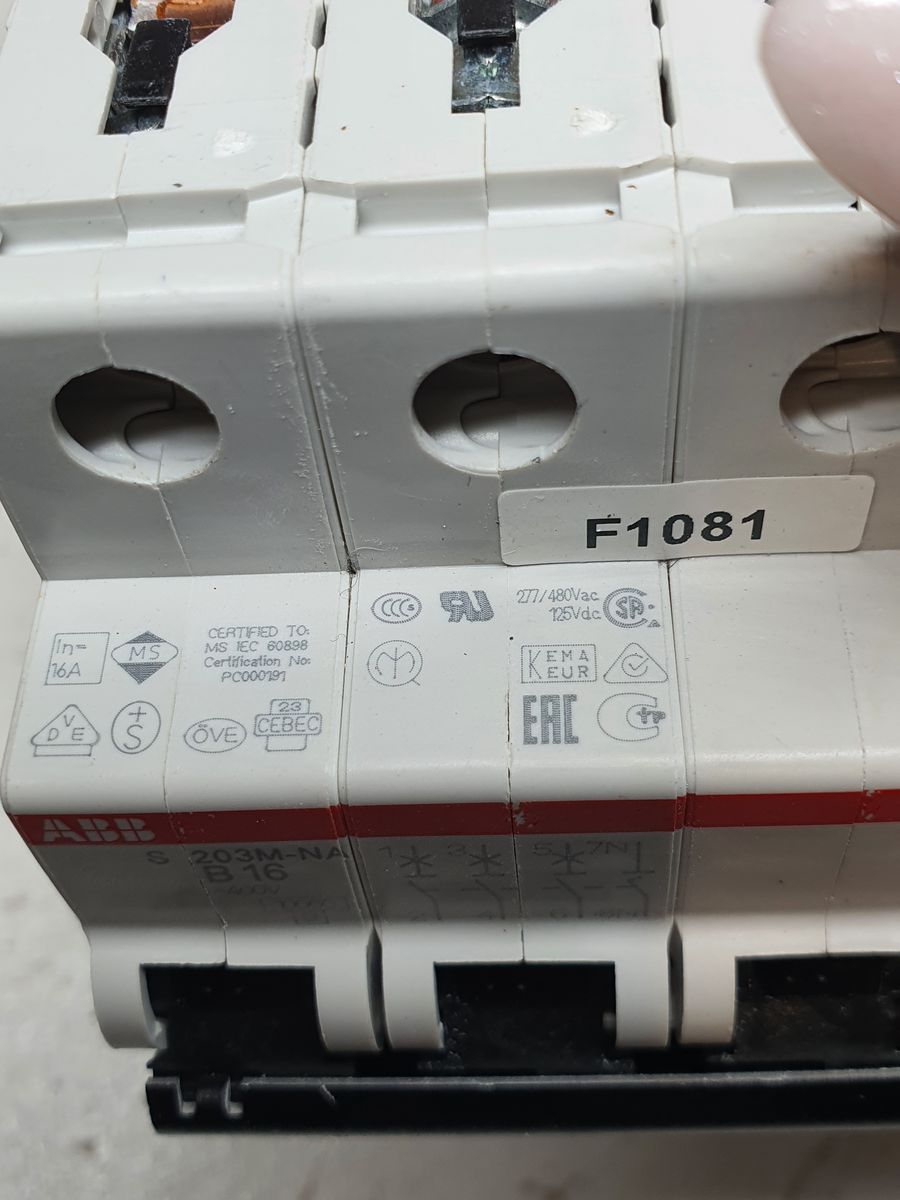

ABB S203M-NA B16

SKU: 7017

Em Estoque

Usado

Excl. IVA: €15,00 (1 disponível)

Incl. IVA: €18,15

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantia por Condição

Novo 12 meses

Recondicionado 6 meses

Usado 3 meses

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Specifications

Parameter	Specification
Rated Current (In)	16 A
Rated Switching Voltage	Max. 440 V AC (incl. tolerance)
	Min. 12 V AC
	Min. 12 V DC
Supply Voltage Type	AC
Frequency (f)	50 Hz
Rated Frequency	50 / 60 Hz
Rated Insulation Voltage (Ui)	440 V (IEC/EN 60664-1)
Rated Impulse Withstand Voltage (Uimp)	4 kV
	5 kV at 2000 m
	6.2 kV at sea level
Dielectric Strength	2 kV (50 / 60 Hz, 1 min)
Power Dissipation	10 W total
Power Dissipation per Pole	2.5 W

Temperature

Parameter	Specification
Ambient Air Temperature – Operation	−25 … +55 °C
Ambient Air Temperature – Storage	−40 … +70 °C
Reference Air Temperature	30 °C
Pollution Degree	3
Environmental Conditions	28 cycles
	55 °C / 90–96 % RH
	25 °C / 95–100 % RH
Vibration Resistance (IEC 60068-2-6)	20 cycles, 5 g, 5–150–5 Hz
Shock Resistance (IEC 60068-2-27)	25 g, 2 shocks, 13 ms

Dimensions & Weight
