Manômetro

Dwyer 2000-25MMC

SKU: 6035

Em Estoque

Selecionar Condição

Used

Excl. IVA: €30,00 (1 disponível)

Incl. IVA: €36,30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informações sobre Garantia

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantia por Condição

Novo 12 meses

Recondicionado 3 meses

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descrição

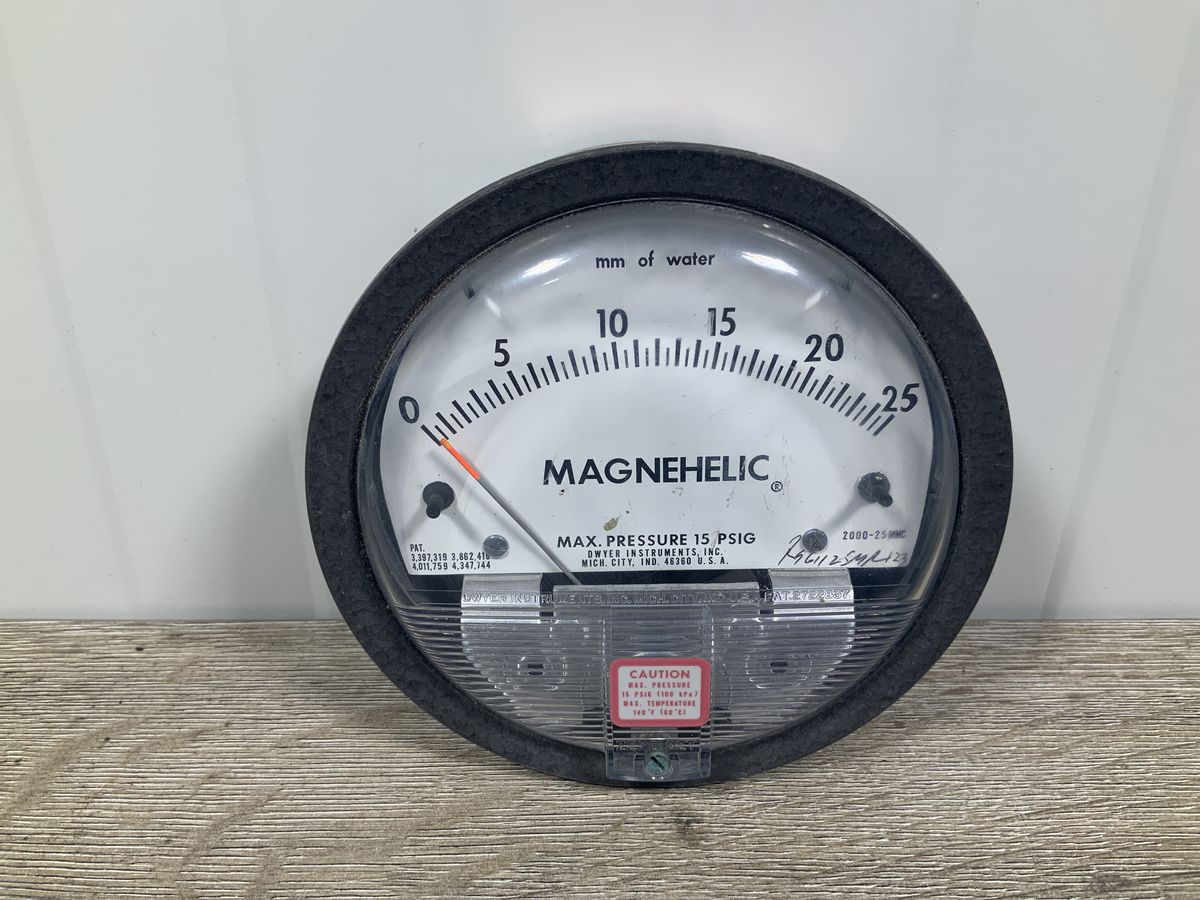

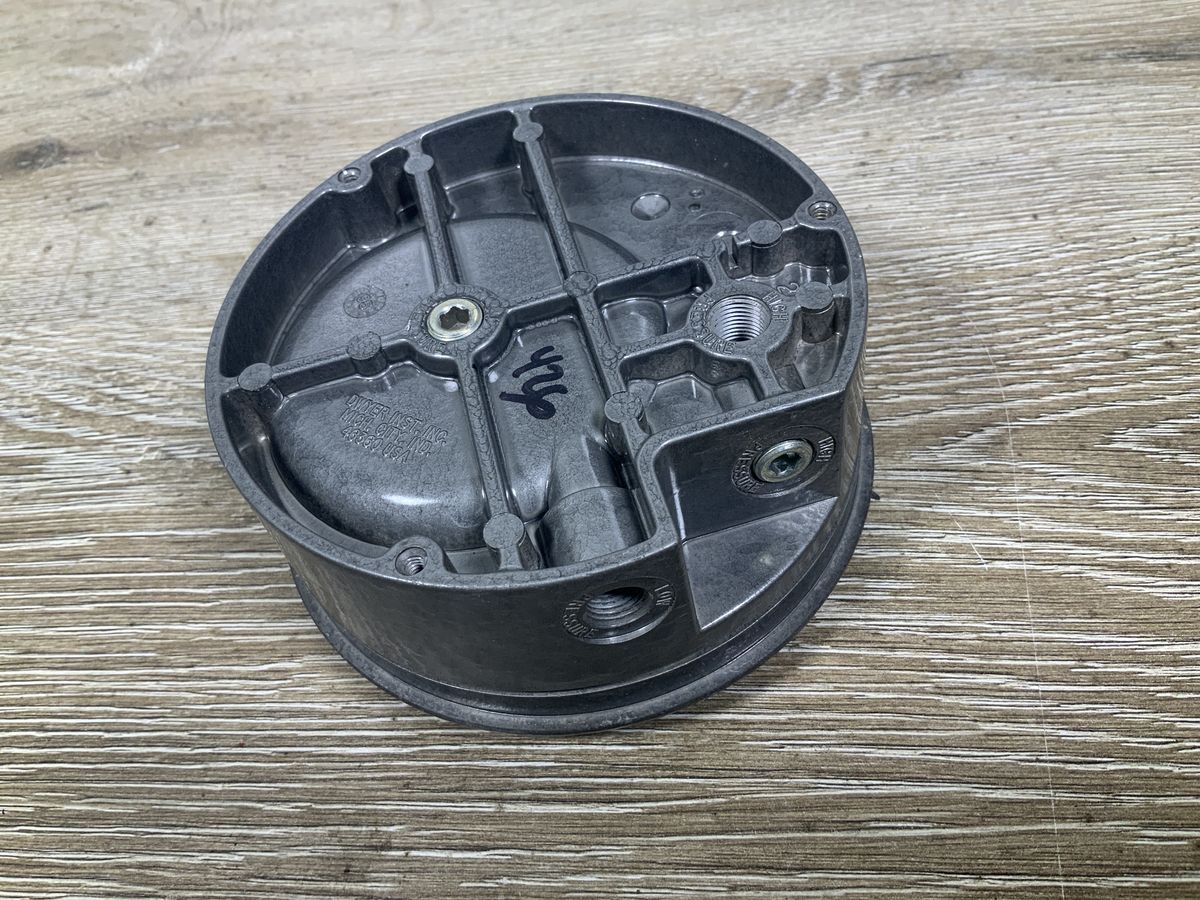

Dwyer Magnehelic 2000 series differential pressure gauge designed to measure positive, negative, or differential pressure of air and non-corrosive gases. Features a 4-inch dial with a measurement scale of 0 to 25 mm of water column and a rugged die-cast aluminum enclosure. Equipped with dual 1/8-inch NPT high and low pressure ports on the side and rear.

Specifications – 2000-25MMC

Parameter	Specification
Pressure Range	0 - 25 mm of water
Max. Pressure	15 PSIG (100 kPa)
Max. Temperature	140 °F (60 °C)
Min. Temperature	20 °F (-6 °C)
Process Connection	1/8" NPT Female
