Contator

finder 22.44.0.024.4310

SKU: 7028

Em Estoque

Usado
Obtido de ambiente de trabalho

Excl. IVA: €50,00 (1 disponível)

Incl. IVA: €60,50

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantia por Condição

Novo 12 meses

Recondicionado 6 meses

Usado 3 meses

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

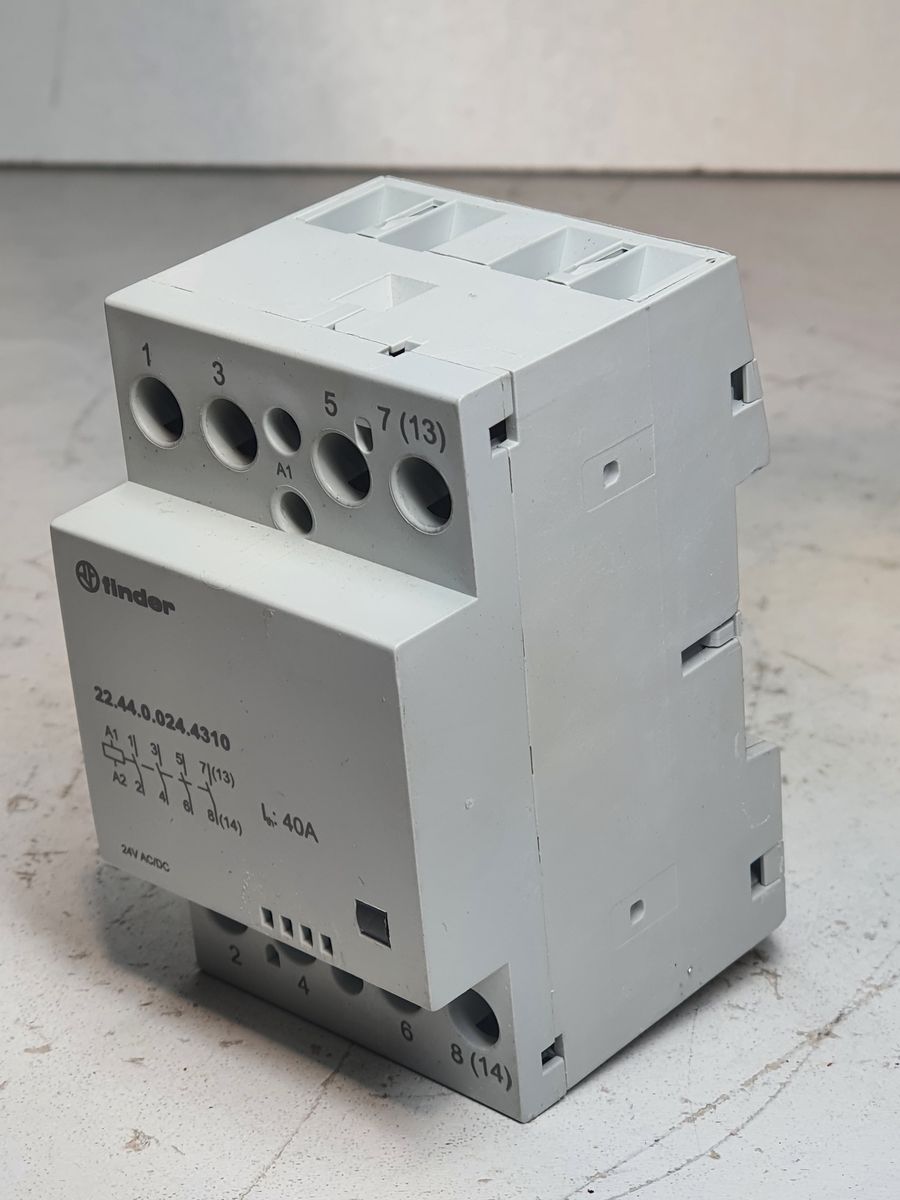

finder 22.44.0.024.4310 Magnetic switch

Specifications:

Attribute	Value
Rated Control Voltage at AC 50 Hz	24 V
Rated Control Voltage at AC 60 Hz	24 V
Rated Control Voltage at DC	24 V
Control Voltage Type	AC/DC
Rated Operational Current Ie (AC-1, 400 V)	40 A
Rated Operational Current Ie (AC-3, 400 V)	22 A
Rated Power (AC-3, 400 V)	11 kW
Modular Version (DIN Rail Mounting)	Yes
Number of Auxiliary Contacts (NO)	0
Number of Auxiliary Contacts (NC)	0
Main Circuit Connection Type	Screw terminal
Number of Main Contacts (NC)	0
Number of Main Contacts (NO)	4
Operating Voltage Range AC 50 Hz	20.40 – 26.40 V
Operating Voltage Range AC 60 Hz	20.40 – 26.40 V
Width	53.50 mm
Height	95.80 mm
Depth	63.10 mm
