TEMP

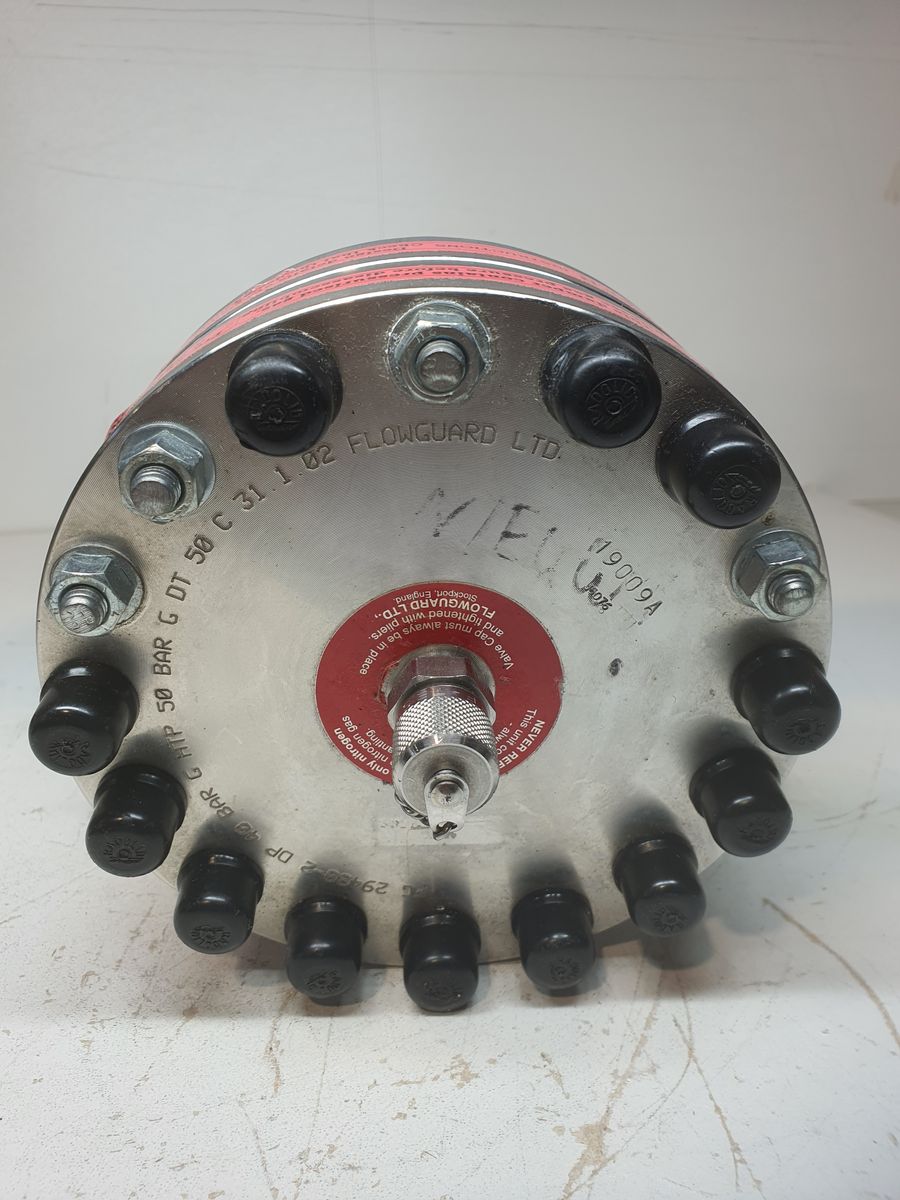

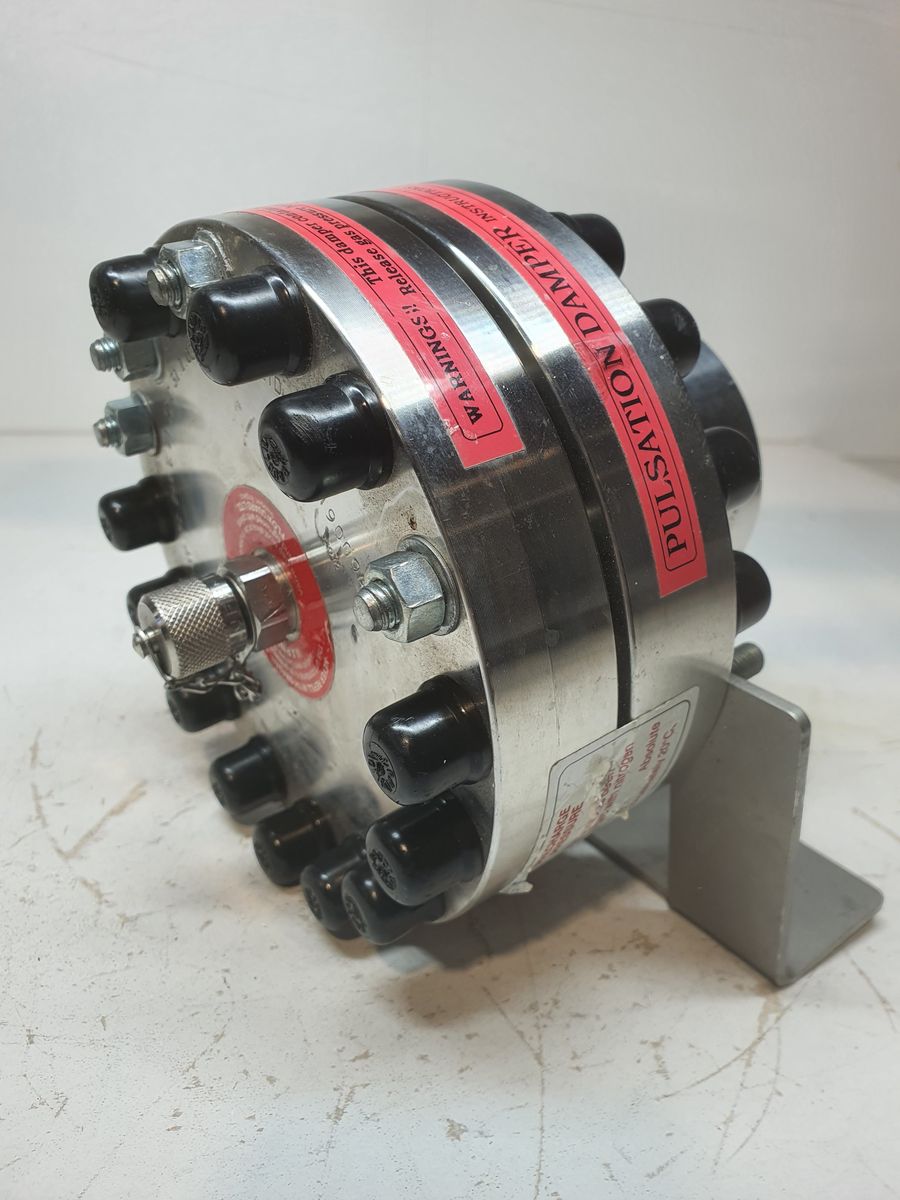

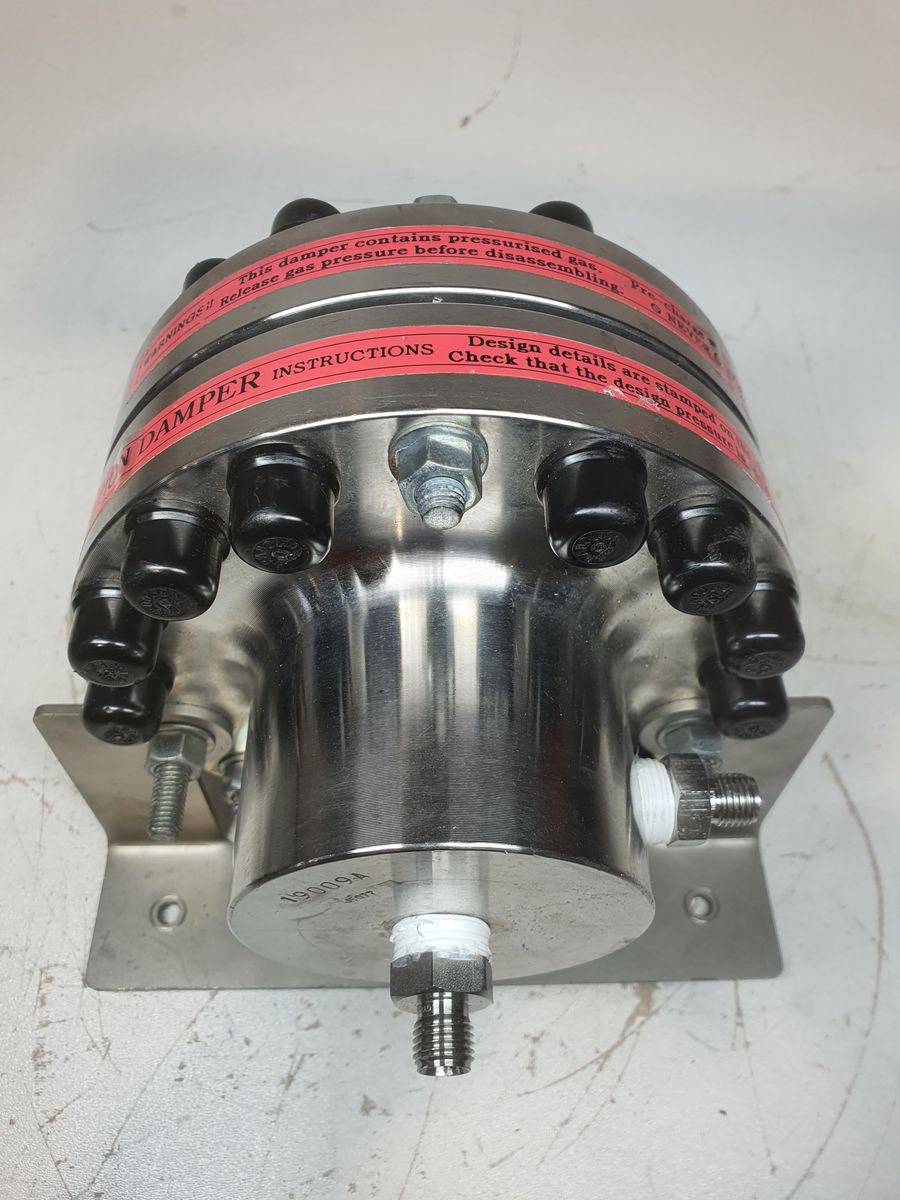

FLOWGUARD Pulsation Damper
SKU: 7045
Em Estoque
Informações sobre Garantia
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.
| Parameter | Specification | ||
|---|---|---|---|
| Manufacturer | Flowguard | ||
| Equipment Type | Pulsation Damper (Bladder / Diaphragm type) | ||
| Application | Pulsation reduction in positive displacement pump systems | ||
| Precharge Gas | Nitrogen (dry, oil-free) | ||
| Precharge Pressure | Typically 50–80% of system operating pressure | ||
| Precharge Medium | Gas-filled bladder / diaphragm | ||
| Operating Principle | Gas compression absorbs pressure pulses and releases energy to smooth flow | ||
| Body Material | Carbon Steel / Stainless Steel (depending on model) | ||
| Bladder / Diaphragm Material | NBR, EPDM, PTFE (application dependent) | ||
| Connection Type | Threaded / Flanged / Inline | ||
| Design Pressure | 40 bar | Max operating pressure | |
| Hydro Test Pressure | 50 bar | Factory test limit | |
| Design Temperature | 50°C | Max operating temperature | |
| Volume Capacity | Small to large volumes (≈0.1 L to several liters) | ||
| Installation Location | Pump discharge line (recommended) | ||
| Maintenance Requirement | Periodic nitrogen pressure check and recharge | ||
| Safety Requirement | Must NOT be charged with oxygen (explosion risk) |
×
![]()
