Atuadores Pneumáticos

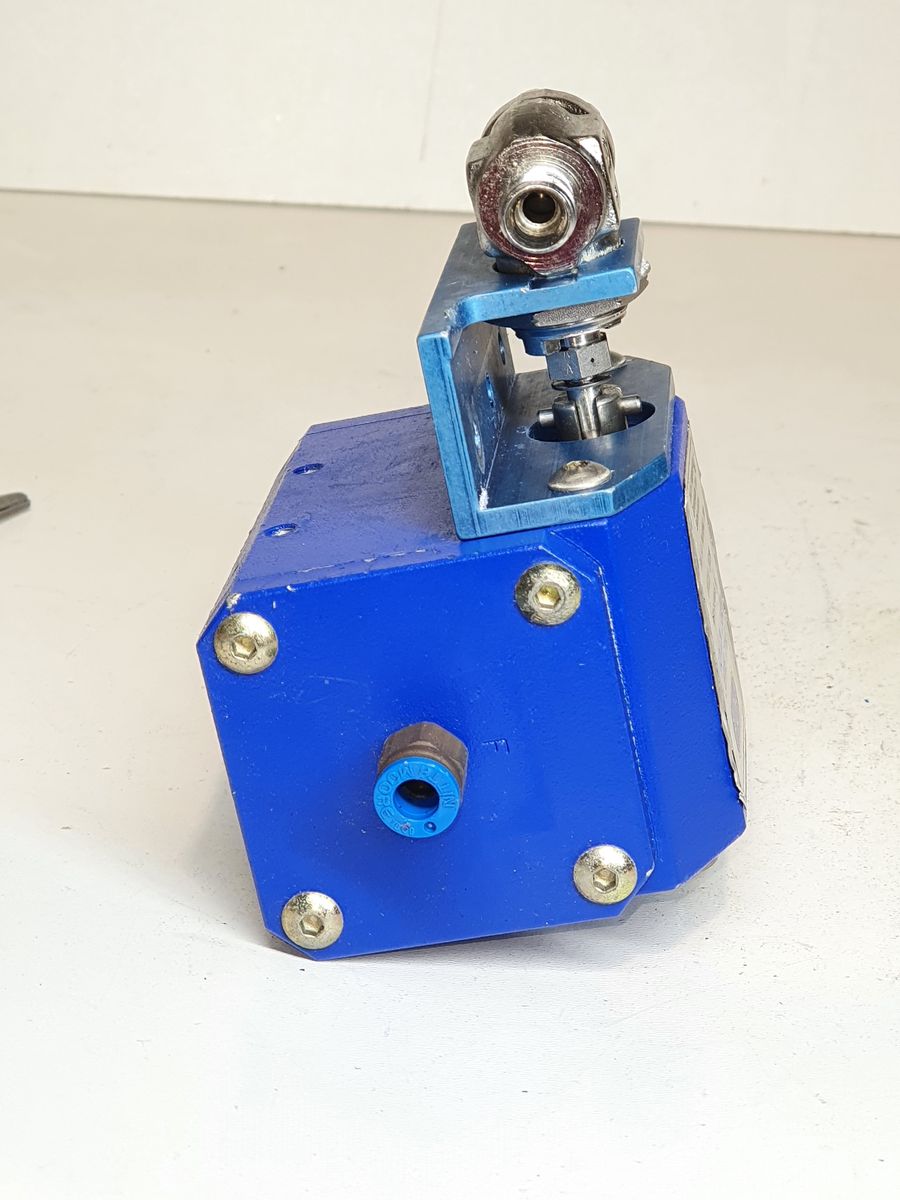

Hoke 0722A4/ 7115G4Y

SKU: 4021

Em Estoque

Usado
Obtido de ambiente de trabalho

Preço sob consulta

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantia por Condição

Novo 12 meses

Recondicionado DOA

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

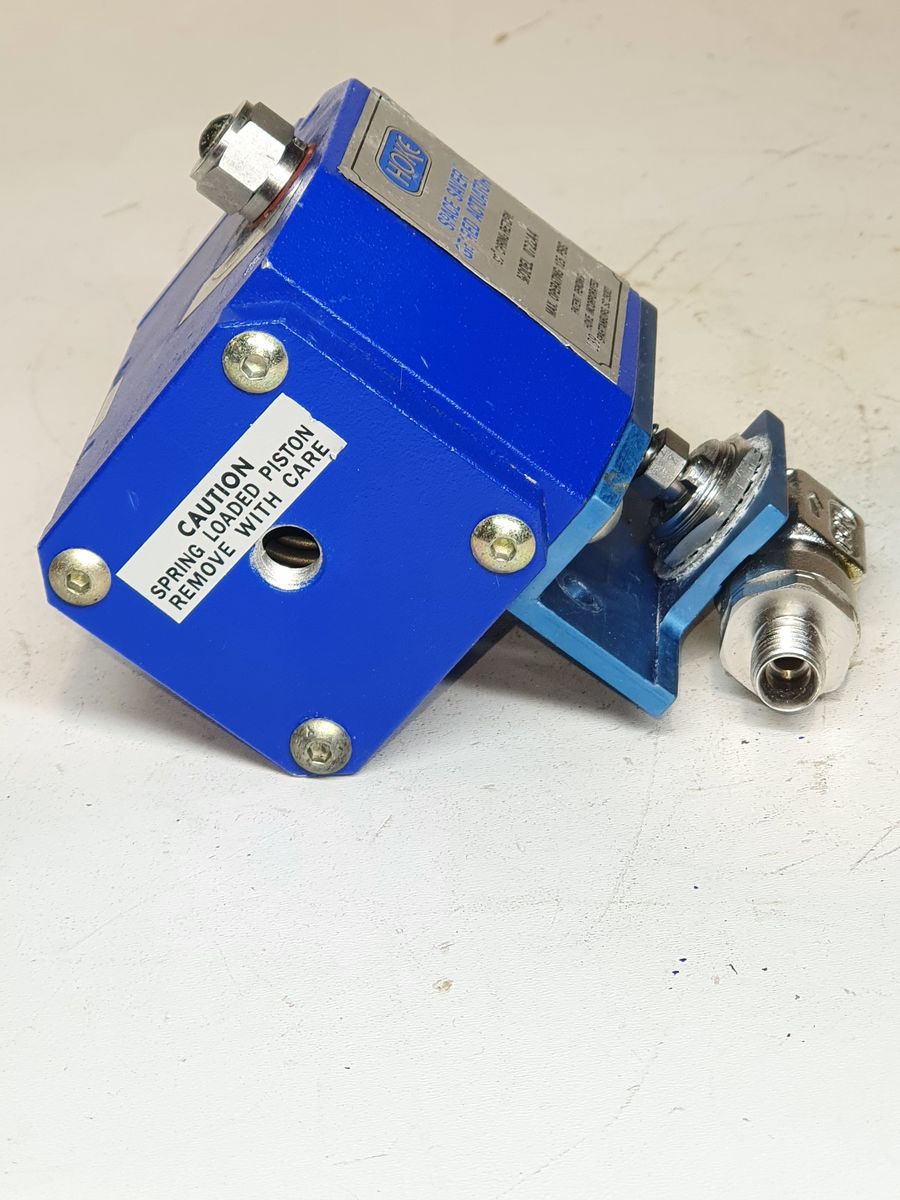

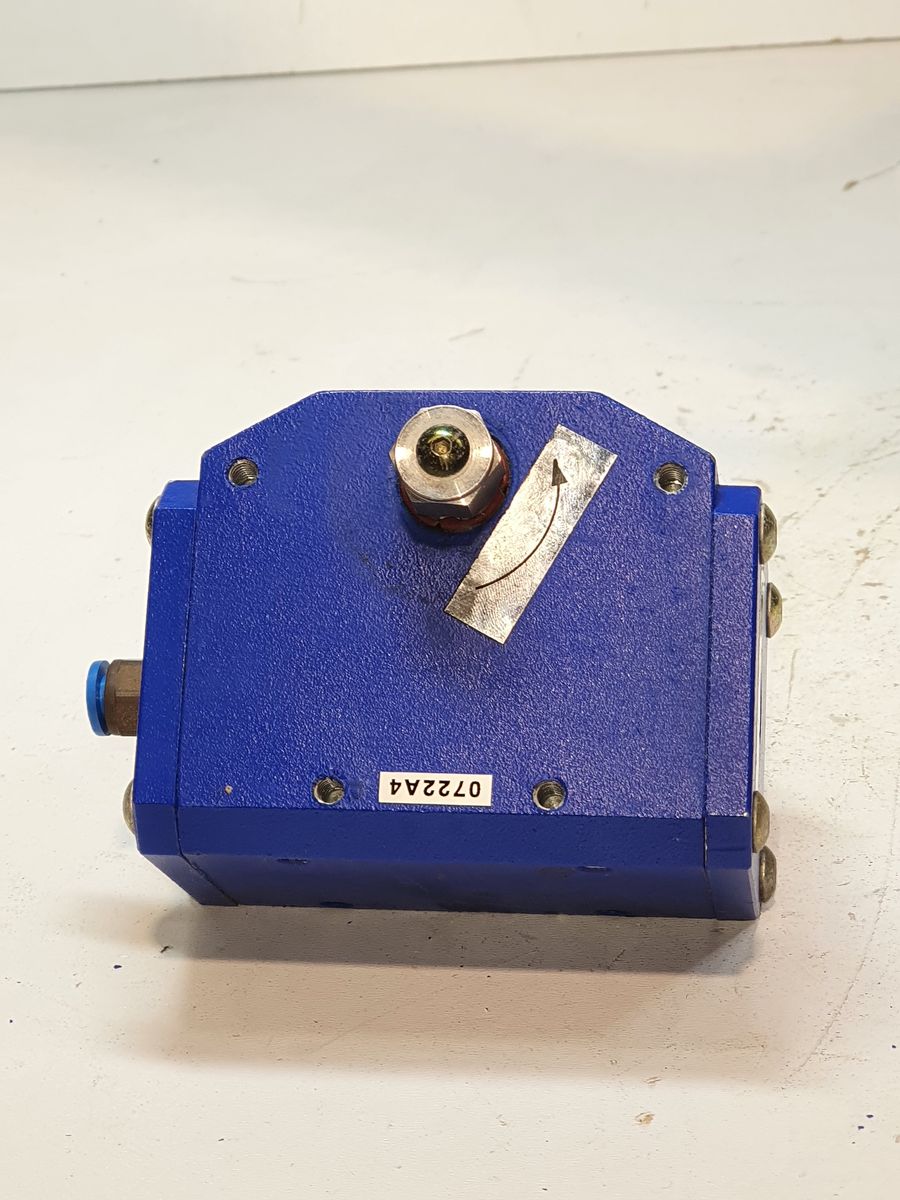

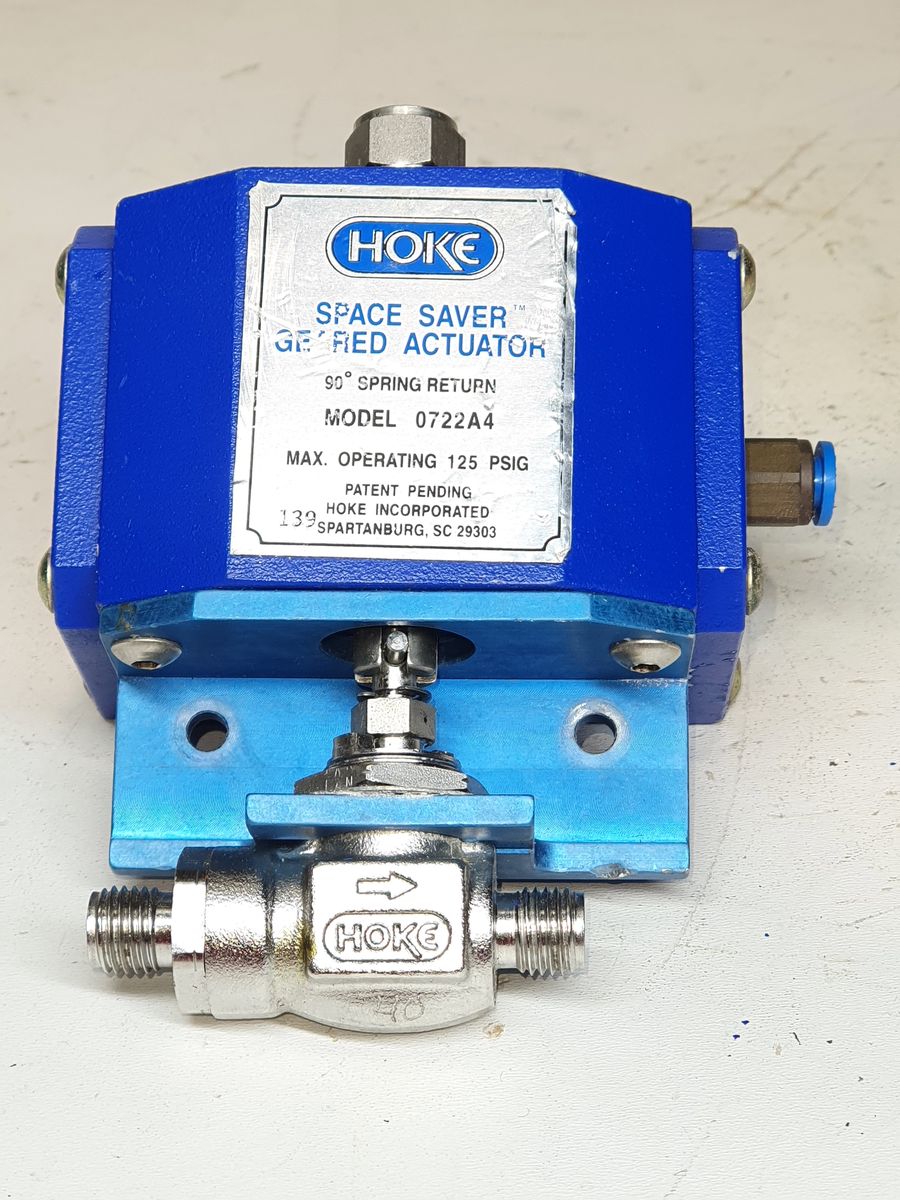

Hoke 0722A4

Item	Specification
Actuator Type	90° Spring Return Pneumatic Actuator
Model Number	0722A4
Series	Space Saver™ 0700 Series
Housing Material	Polyurethane-coated aluminum
Geared Output Shaft	316 stainless steel
Internal Liner	Reinforced polyamide polymer
Seals	Nitrile (A4 designation)
Geared Piston Coating	Anodized aluminum with PTFE
Spring Material	Alloy steel with corrosion-resistant coating
Output Torque (90° Spring Return)	See torque table below
Minimum Inlet Pressure for 90° Rotation	60 psig (~4 bar)
Air Supply Connection	1/8″ Female NPT
Maximum Operating Pressure	125 psig (9 bar)
Operating Temperature Range	0 °F to 250 °F (-18 °C to 121 °C)
Cycle Time	~1 second (varies with supply and load)
Minimum Cycle Life	≥ 250,000 cycles
Weight	1.7 lb (0.75 kg)

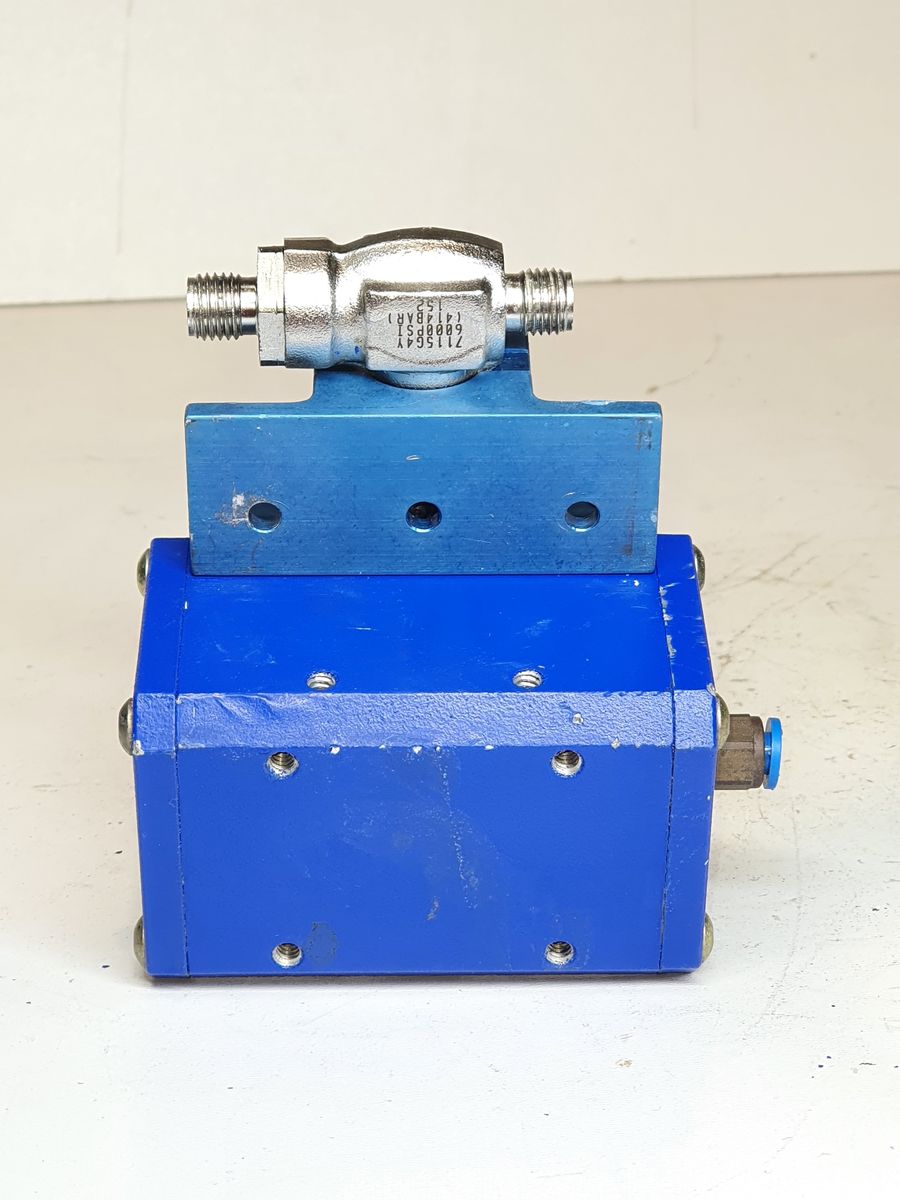

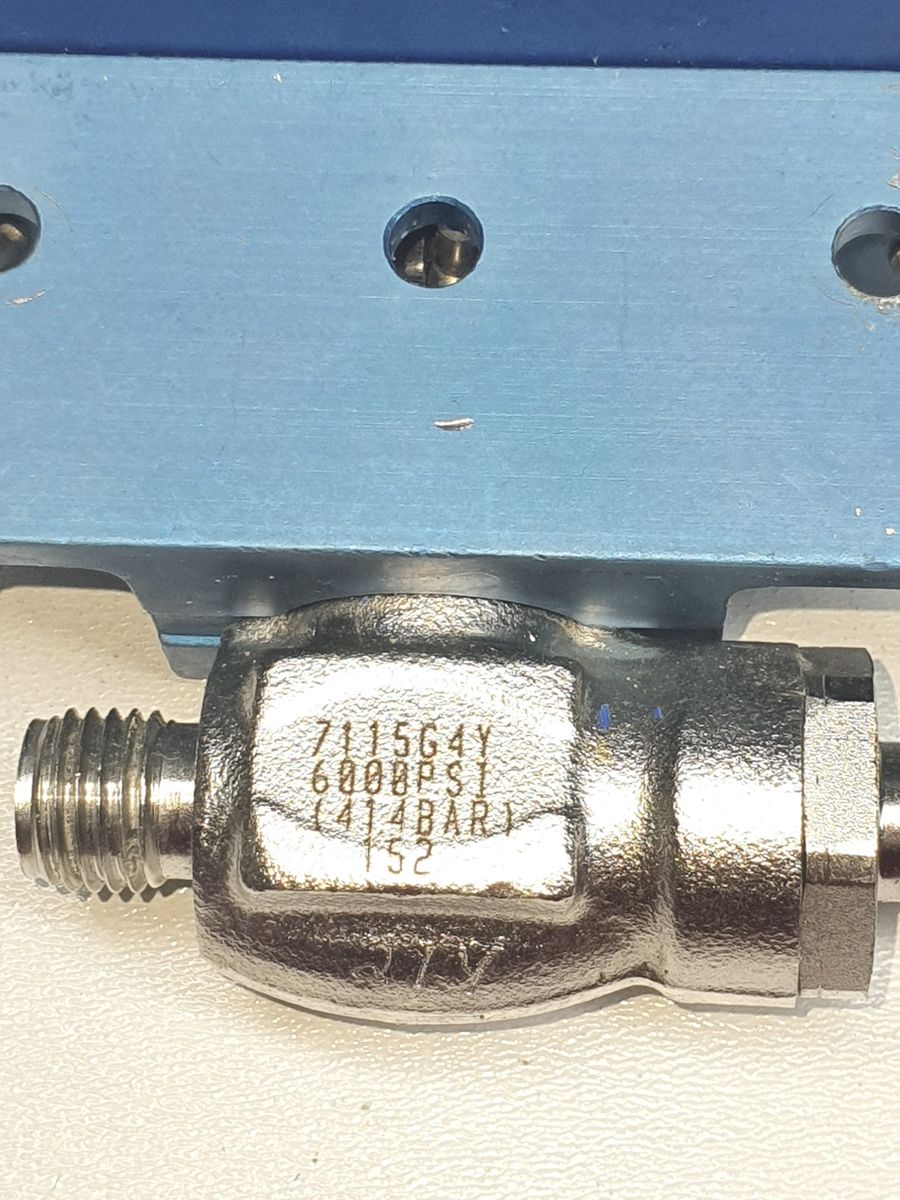

Hoke 7115G4Y

Connections - Inlet	1/4" Gyrolok
Connections - Outlet	1/4" Gyrolok
Body Material	316 Stainless Steel
Operating Pressure Range	6000 psig at 70° F (414 bar at 21° C)
Operating Temperature Range	0 to +300 ºF-18 to +149 ºC
Orifice	0.187 in4.70 mm
Cv	0.80
C	1 19/32 in41 mm
E	3 3/32 in78 mm
H	1/2 in13 mm
H1	7/16 in11 mm
Panel Hole	49/64 in19 mm
Panel Thickness	1/4 in6.0 mm
Features & Benefits	Quarter turn handle provides a visual indication of on/off valve position, improving safety. Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability. Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions. Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value. A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fi tting option for the application. Special High Tolerance NPT Thread
