Condicionadores de Sinal

PR Electronics 5114A_B

SKU: 7014

Em Estoque

Usado

Excl. IVA: €75,00 (1 disponível)

Incl. IVA: €90,75

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantia por Condição

Novo 12 meses

Recondicionado 6 meses

Usado 1 meses

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

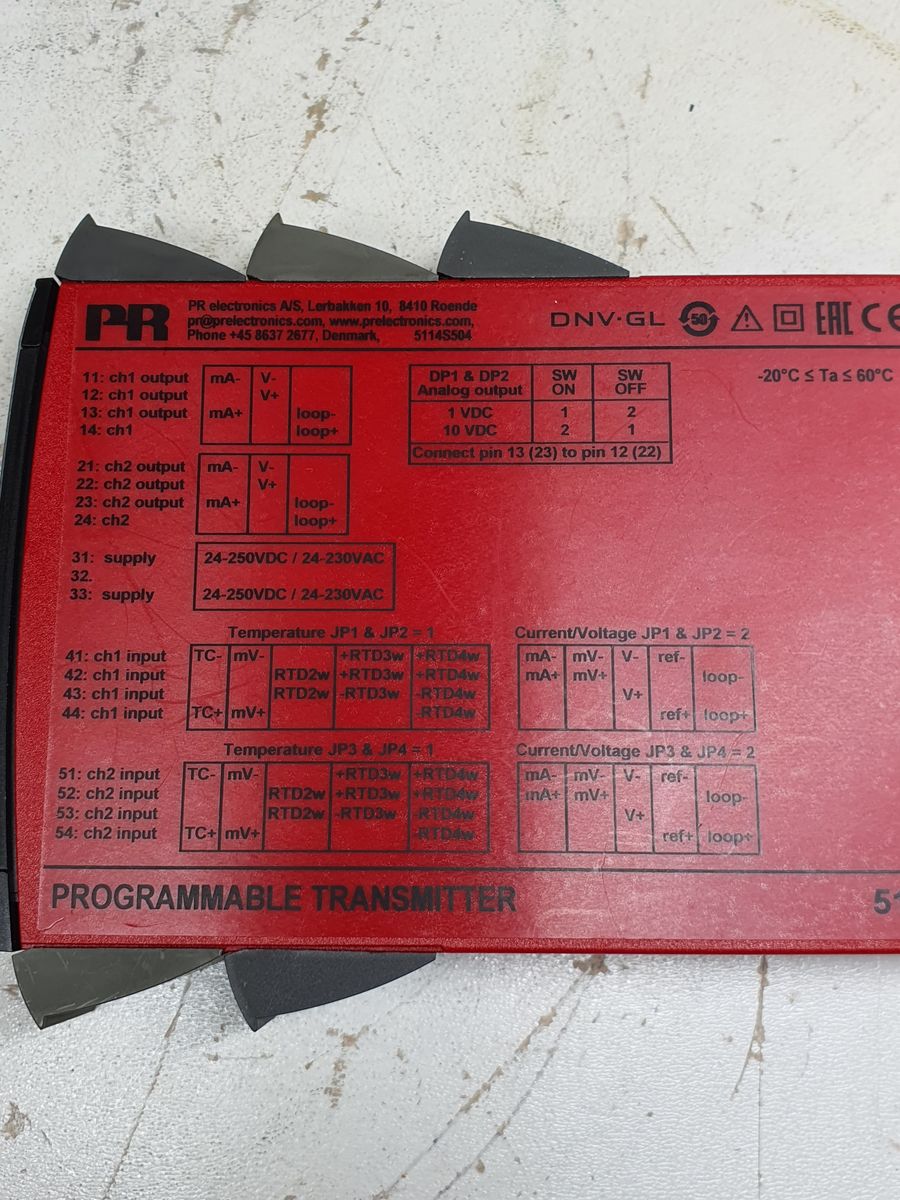

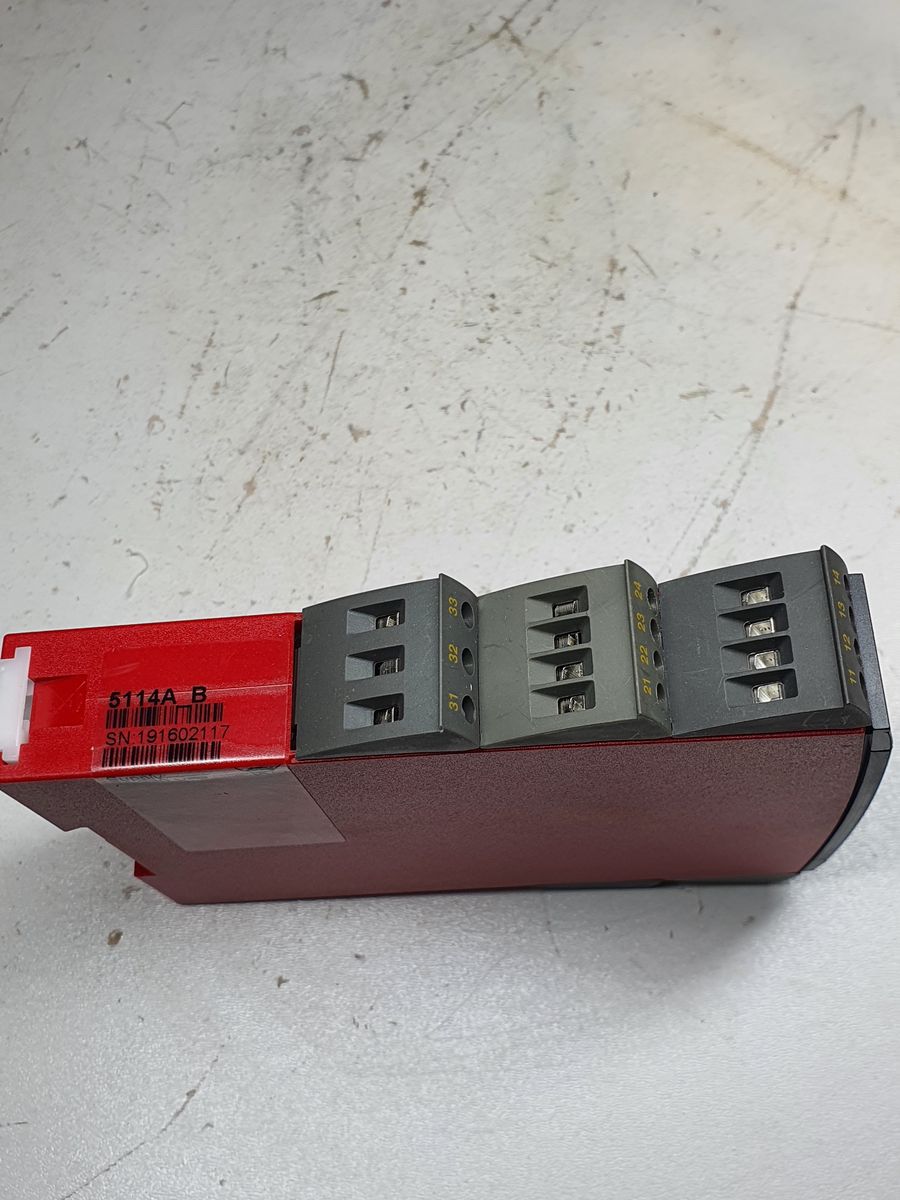

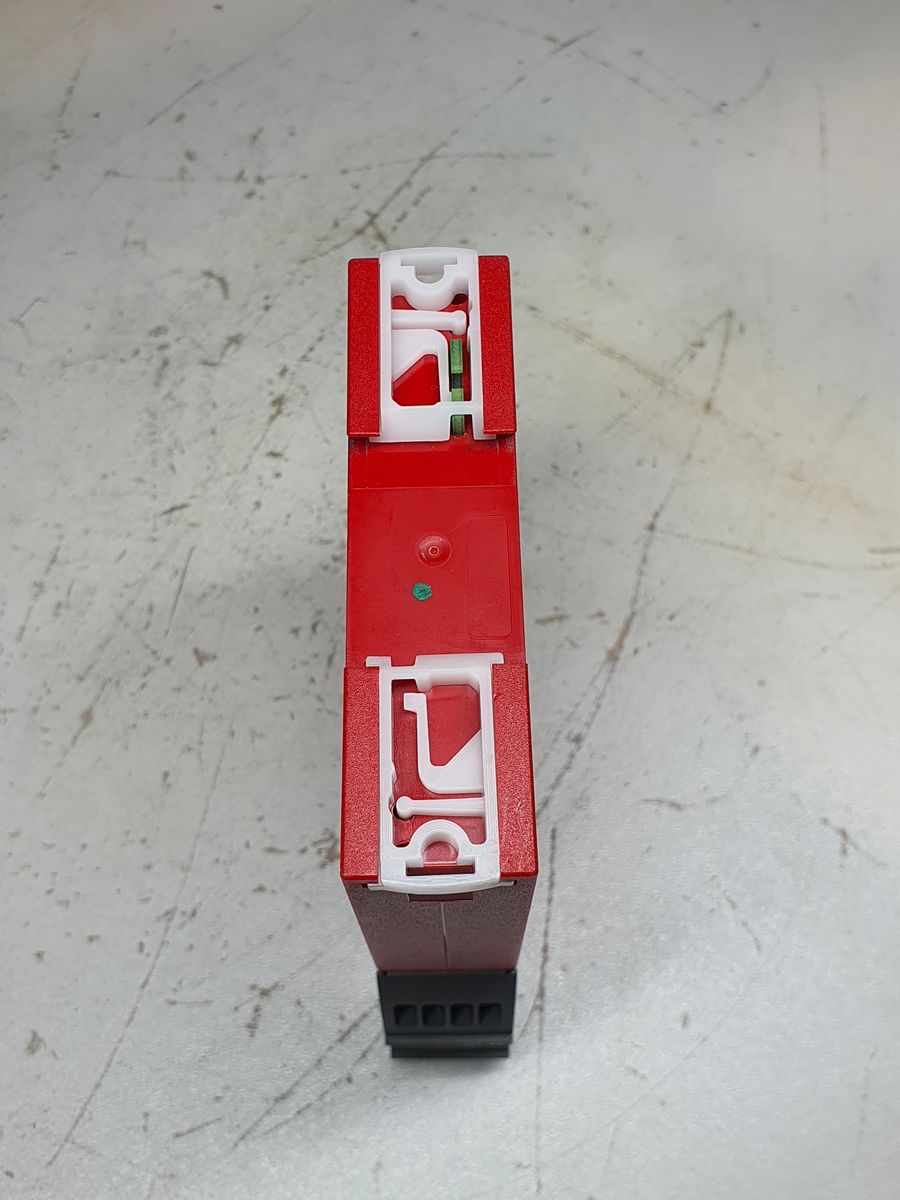

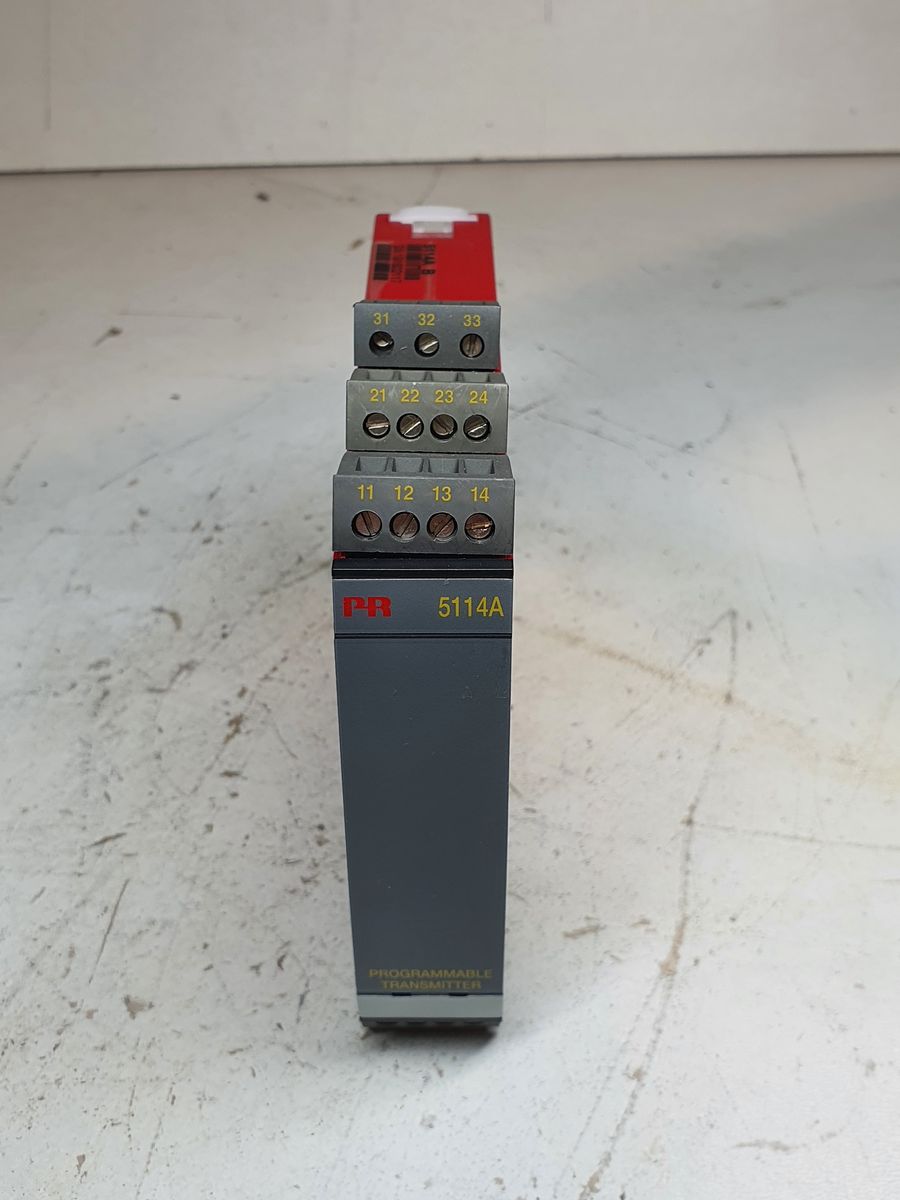

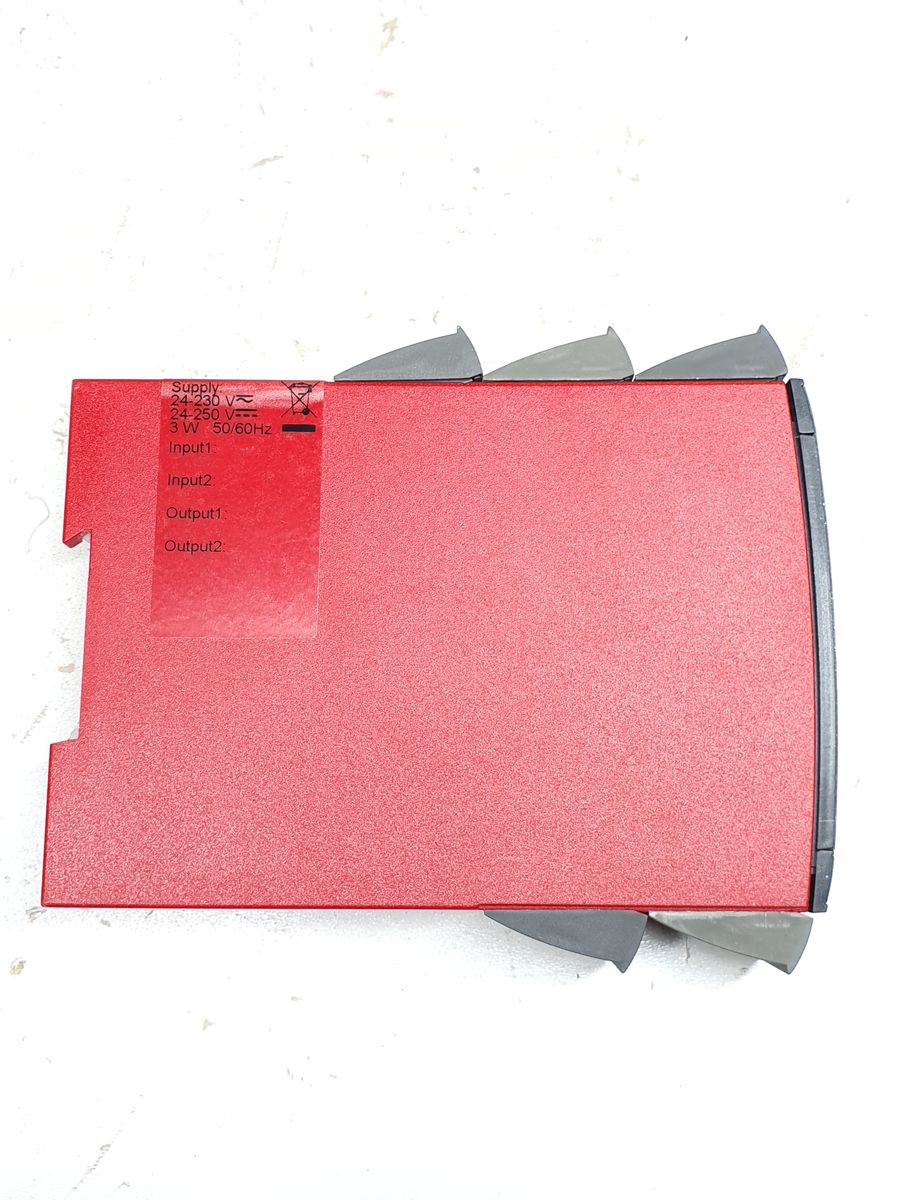

PR Electronics 5114A_B

Specifications:

Attributes	Value
Brand	PR Electronics
Product Type	Converter Module
Input Signal Type	Thermocouple, Current, Voltage, RTD
Output Signal Type	Current/Voltage
Input Range	-150 to 150 mV
Output Range	0 to 10 V
Isolation	3.75kV ac
Supply Voltage	21.6 to 253 V ac, 19.2 to 300 V dc
Hazardous Area Certification	ATEX
Mount Type	DIN Rail
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal Type	Screw
IP Rating	IP20
Signal Conditioner Type	Analogue to Current
Standards/Approvals	EAC, DNV GL, CE, CSA, UL
Series	5114A
Number of Channels	12
