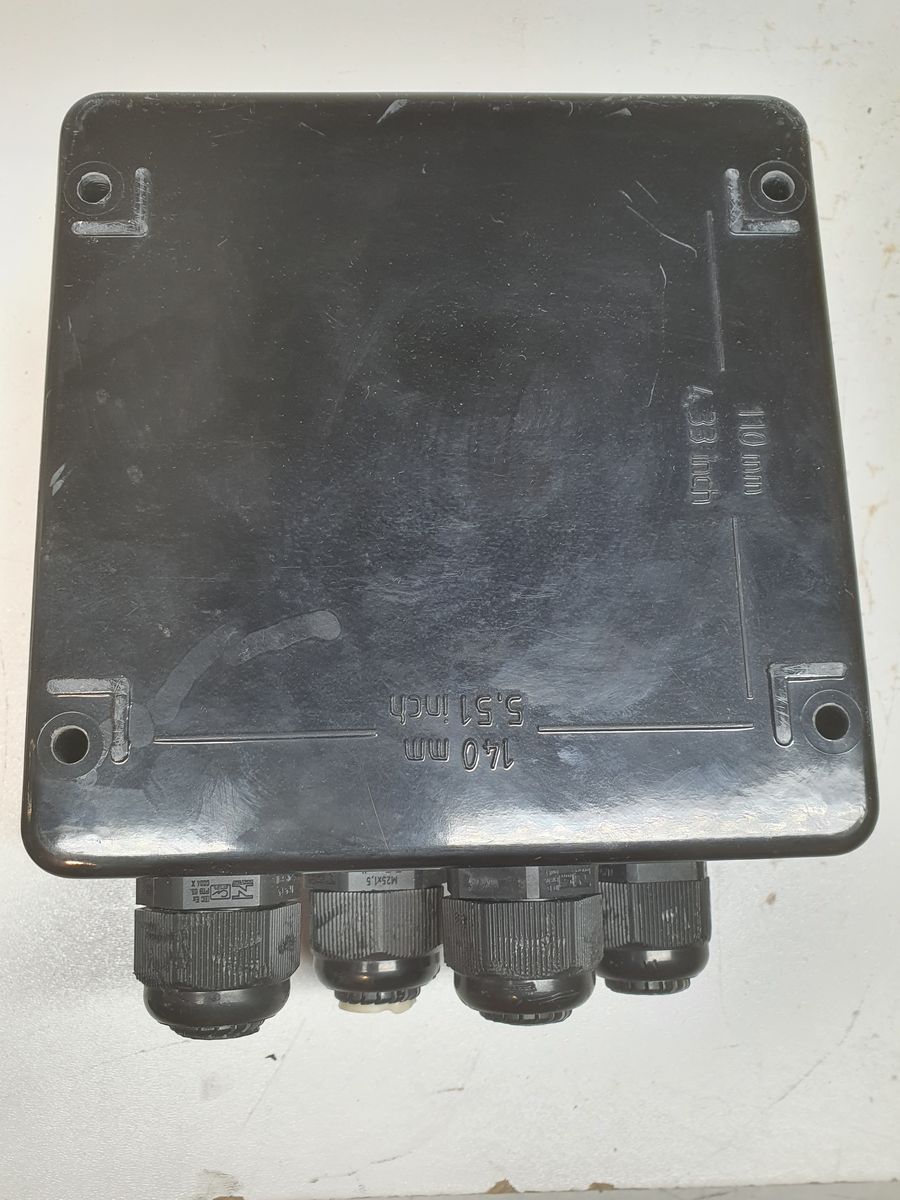

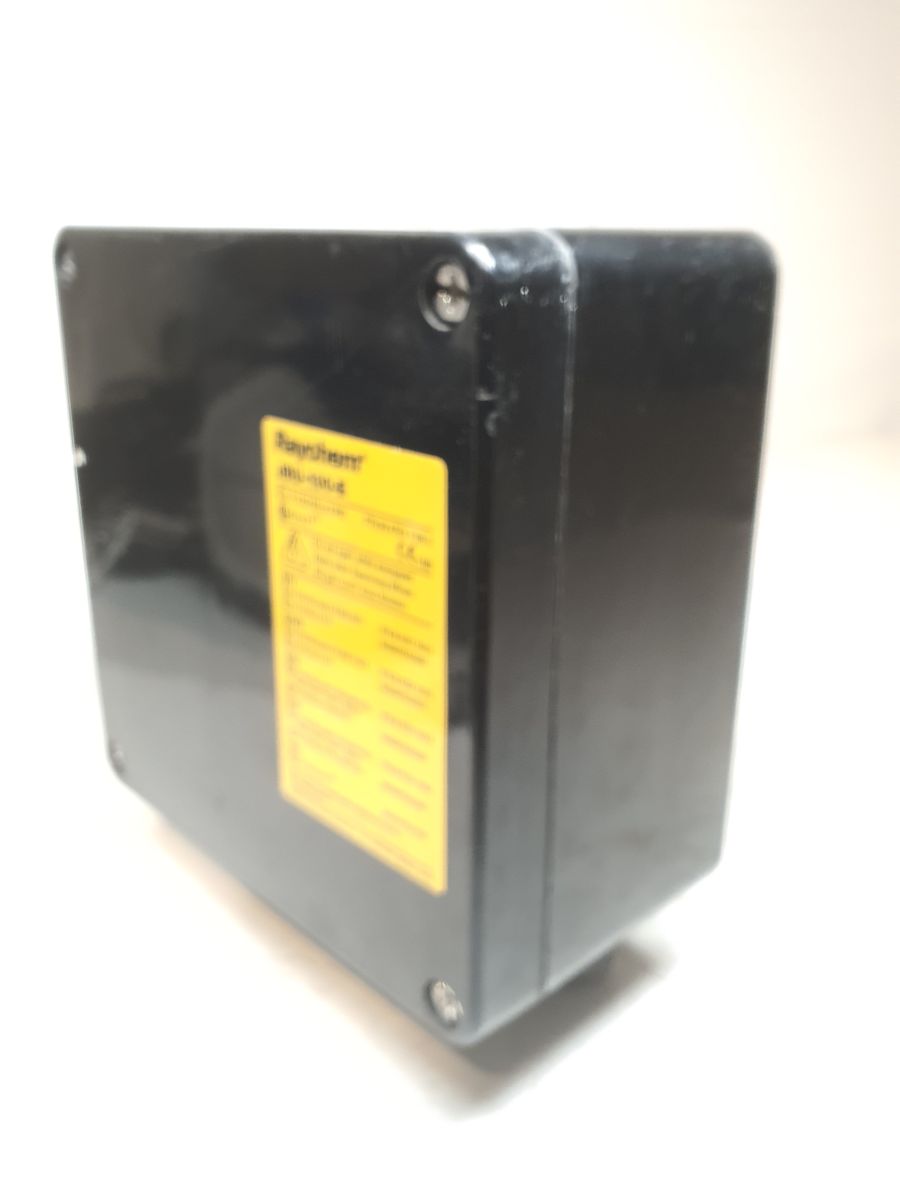

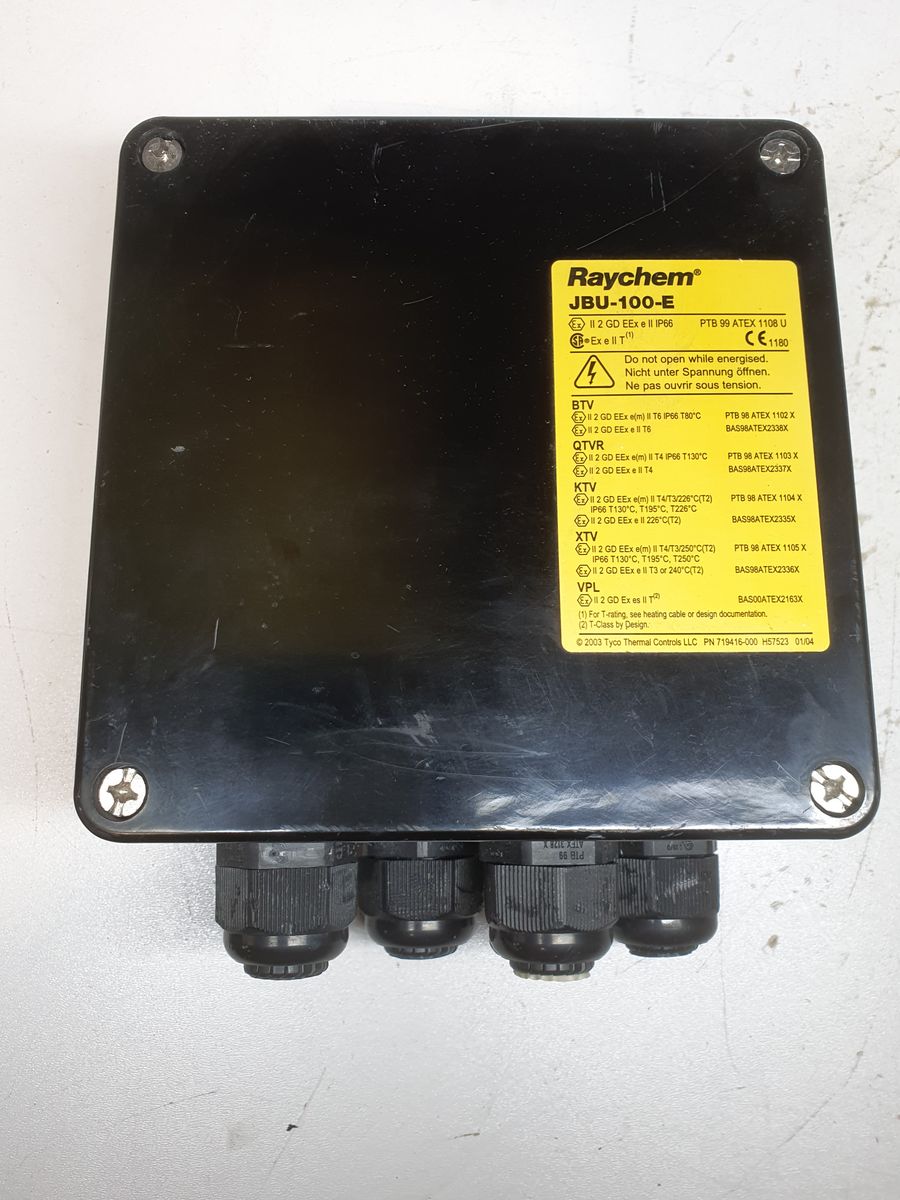

Raychem JBU-100-E

SKU: 7052

Em Estoque

Usado
Obtido de ambiente de trabalho

Excl. IVA: €120,00 (1 disponível)

Incl. IVA: €145,20

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantia por Condição

Novo 12 meses

Recondicionado 6 meses

Usado 3 meses

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Parameter	Specification
Brand	Raychem
Series	JBU-100
Model	JBU-100-E
Equipment Type	Junction Box (Heat Tracing System)
Number of Connections	4
Number of Terminals	6
Assembly Method	On the board
Material	Glass fiber reinforced polymer
Colour	Black
Halogen-Free	Yes
Nominal Voltage	480 V AC
Operating Temperature	-50°C to +56°C
Maximum Conductor Size	10 mm²
Input Type	Cable
IP Rating	IP66
Explosion Protection	ATEX Certified
ATEX Zones	Zone 1, Zone 2 (Gas); Zone 21, Zone 22 (Dust)
Dimensions (L × W × D)	160 × 140 × 90 mm
Signal Lamp	Not included
