Atuadores Pneumáticos

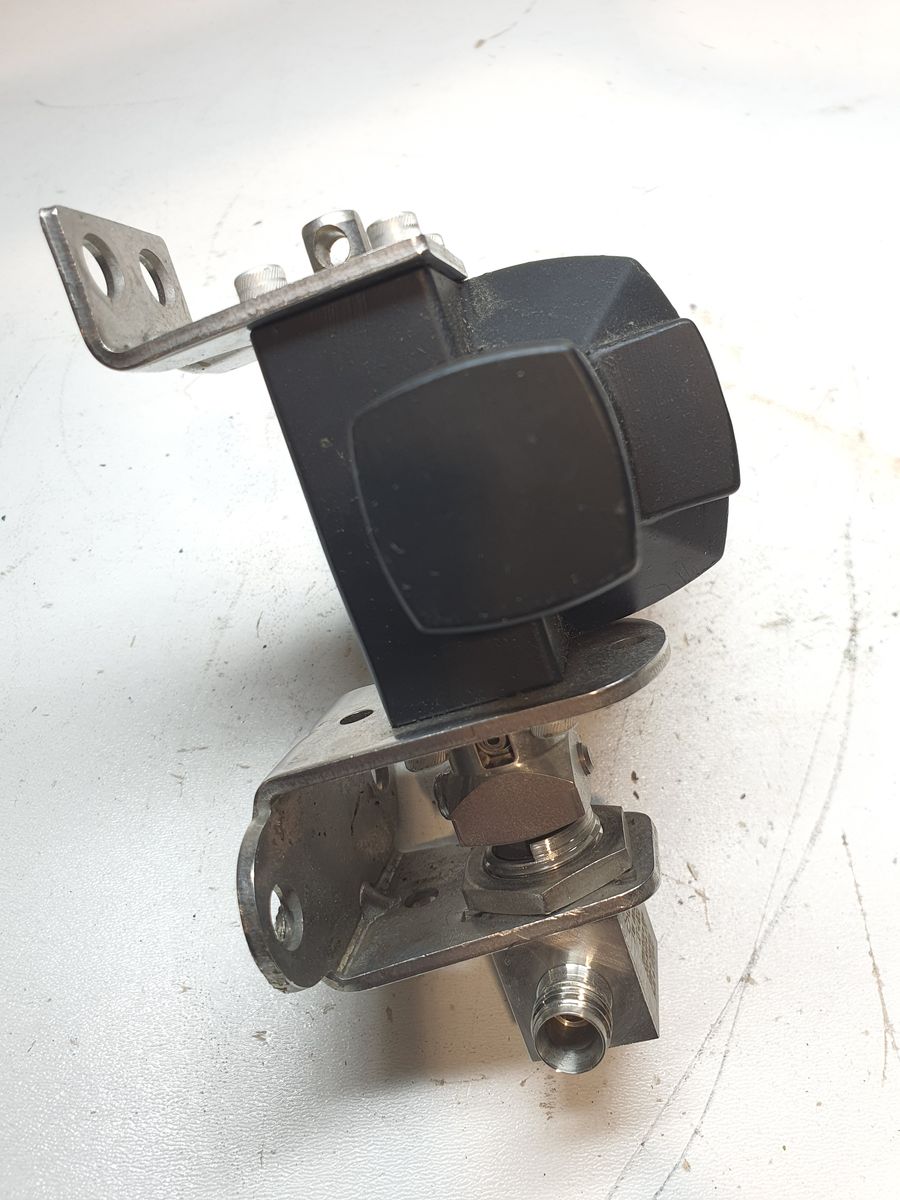

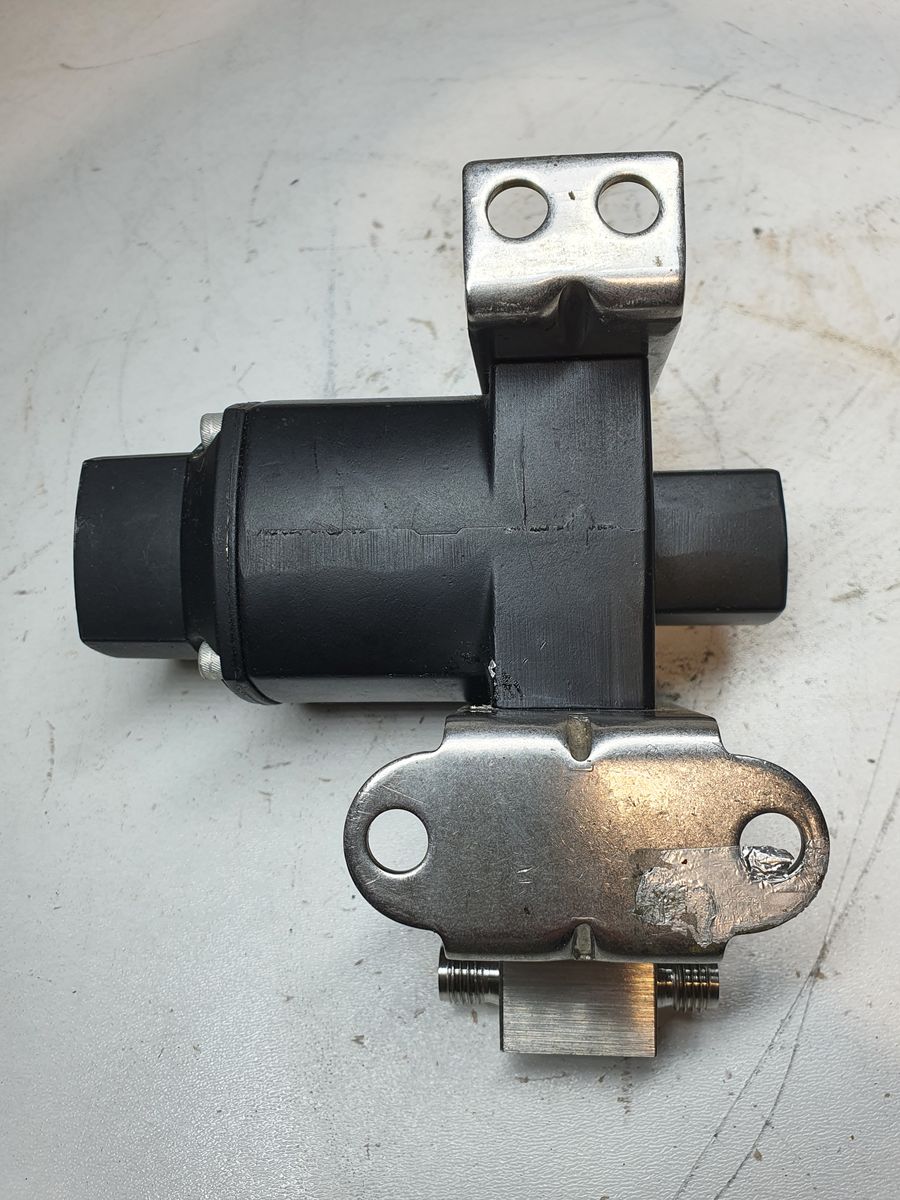

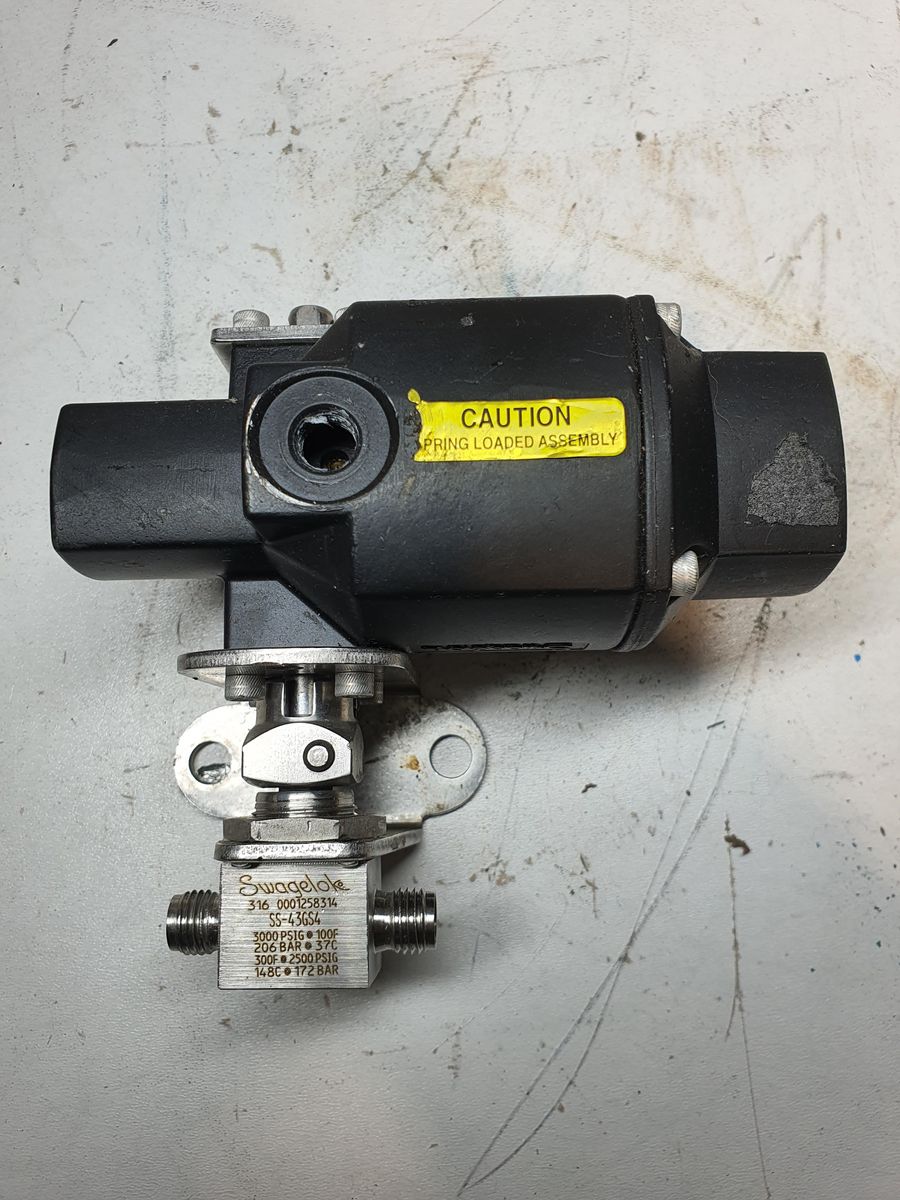

Swagelok 131SR / SS-43GS4
SKU: 4017
Em Estoque
Informações sobre Garantia
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

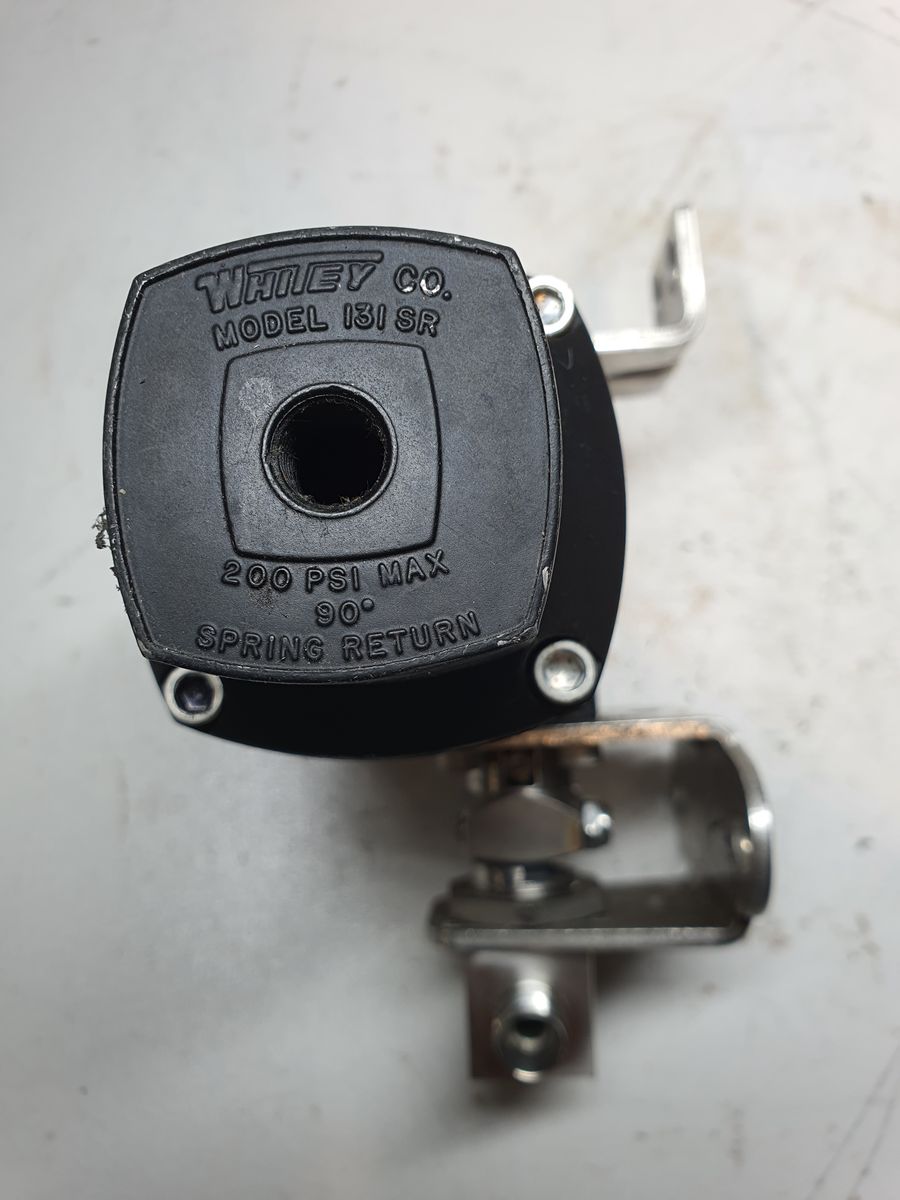

MS-131-SR — 131 Series Pneumatic Spring Return Actuator
| Attribute | Value |
|---|---|
| Actuation Range | 90° Actuation |
| Actuator Air Displacement Volume in.3 (cm3) | 1.5 (24.6) |
| Actuator Operation Mode | Spring Return |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| For Series | 131 Series |

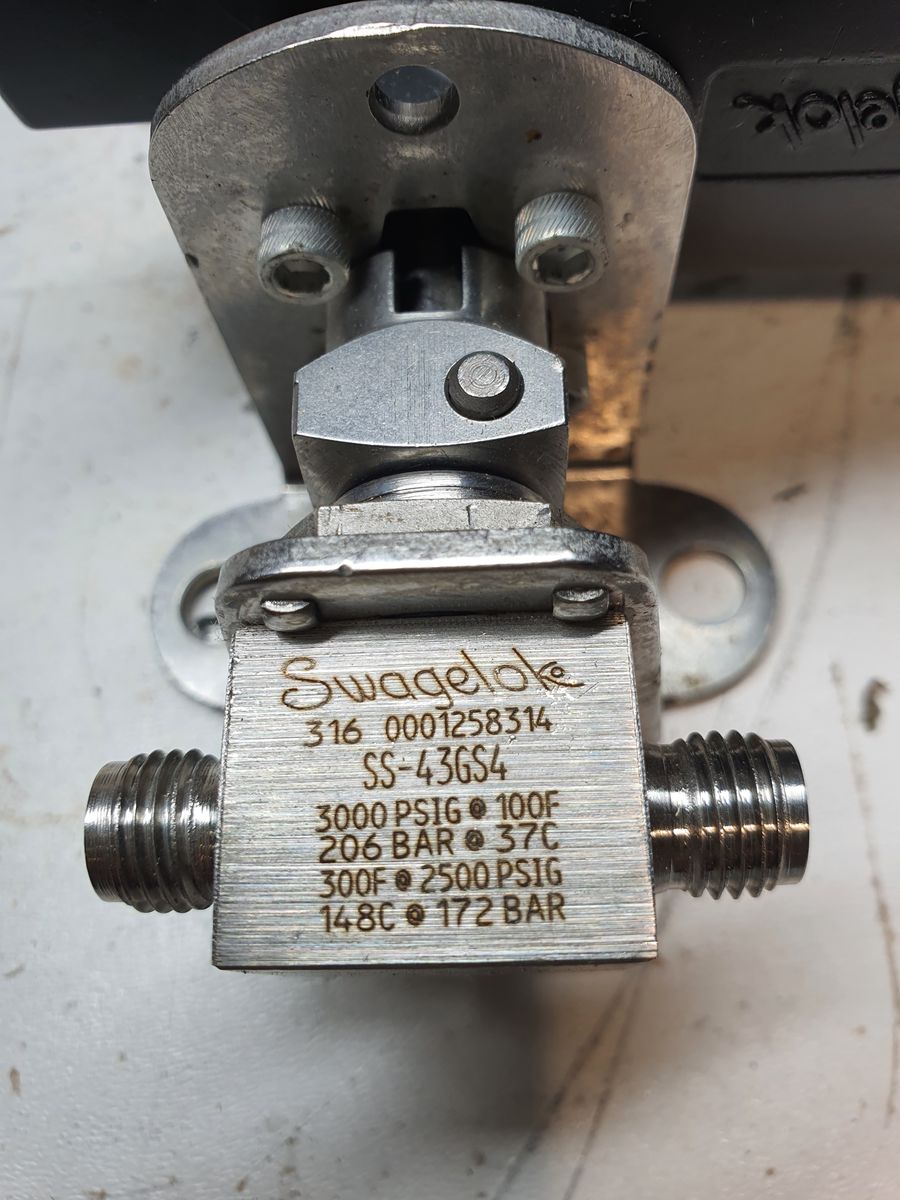

SS-43GS4 — Stainless Steel 1-Piece 40G Series Ball Valve, 1.4 Cv, 1/4 in. Swagelok Tube Fitting
| Attribute | Value |
|---|---|
| Ball/Stem Material | Stainless Steel |
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 1.4 |
| Flow Path | Standard |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Low Emissions Certified | Yes |
| Orifice | 0.187 in /4.7 mm |
| Packing Material | Modified PTFE UHMWPE |
| Ring/Disc Material | Stainless Steel |
| Room Temperature Pressure Rating | 3000 PSIG @ 100°F /206 BAR @ 37°C |
| Testing | Testing according to WS-22 |
×
![]()
