Reguladores
Tescom 44-2363-24
SKU: 8010
Em Estoque
Informações sobre Garantia
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

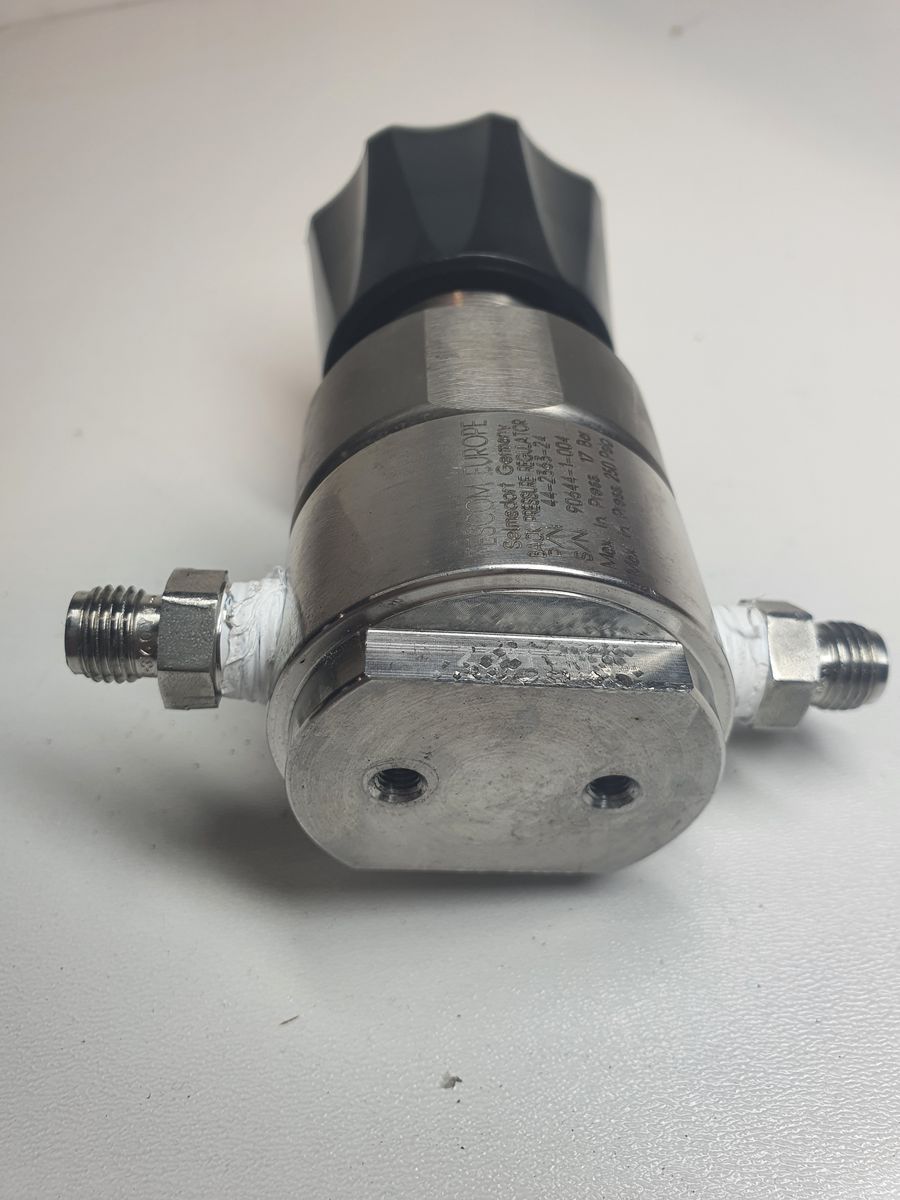

De Tescom 44-2363-24 is een eentraps tegendrukregelaar.
| Category | Parameter |
|---|---|
| Manufacturer | Tescom (Emerson) |
| Series | 44-2300 Single-Stage Back-Pressure Regulator |
| Model | 44-2363-24 |
| Regulator Type | Single-stage back-pressure / relief regulator |
| Adjustable Outlet Pressure Range | 0–250 psig (0–17.2 bar) |
| Design Pressure | 150 % of maximum rated pressure |
| Leakage | Internal: bubble-tightExternal: < 2 × 10⁻⁸ atm cc/sec He |
| Operating Temperature Range | −40 °C to +60 °C (−40 °F to +140 °F) |
| Flow Coefficient | Cv = 0.08 |
| Maximum Operating Torque | 30 in-lbs / 3.4 N·m |
| Ports | 1/4″ NPTF (inlet and outlet) |
| Body Material | 316 Stainless Steel, Brass, or Monel (depending on configuration) |
| Bonnet / Cover Material | 300-series Stainless Steel or Brass |
| Seat Material | PCTFE (CTFE) |
| Diaphragm Material | 316 Stainless Steel or Elgiloy® (cobalt-chromium-nickel alloy) |
| Other Components | 316 Stainless Steel or Monel (for Monel body variants) |
| Cleaning Standards | CGA 4.1 and ASTM G93 (ultraclean applications) |
| Weight (without gauges) | ~0.9 kg / 2 lb |
×
![]()
