Atuadores Pneumáticos

Festo DNU-32-50-PPV-A

SKU: 4038

Em Estoque

Selecionar Condição

Used

Excl. IVA: €30,00 (1 disponível)

Incl. IVA: €36,30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informações sobre Garantia

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantia por Condição

Novo 12 meses

Recondicionado DOA

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descrição

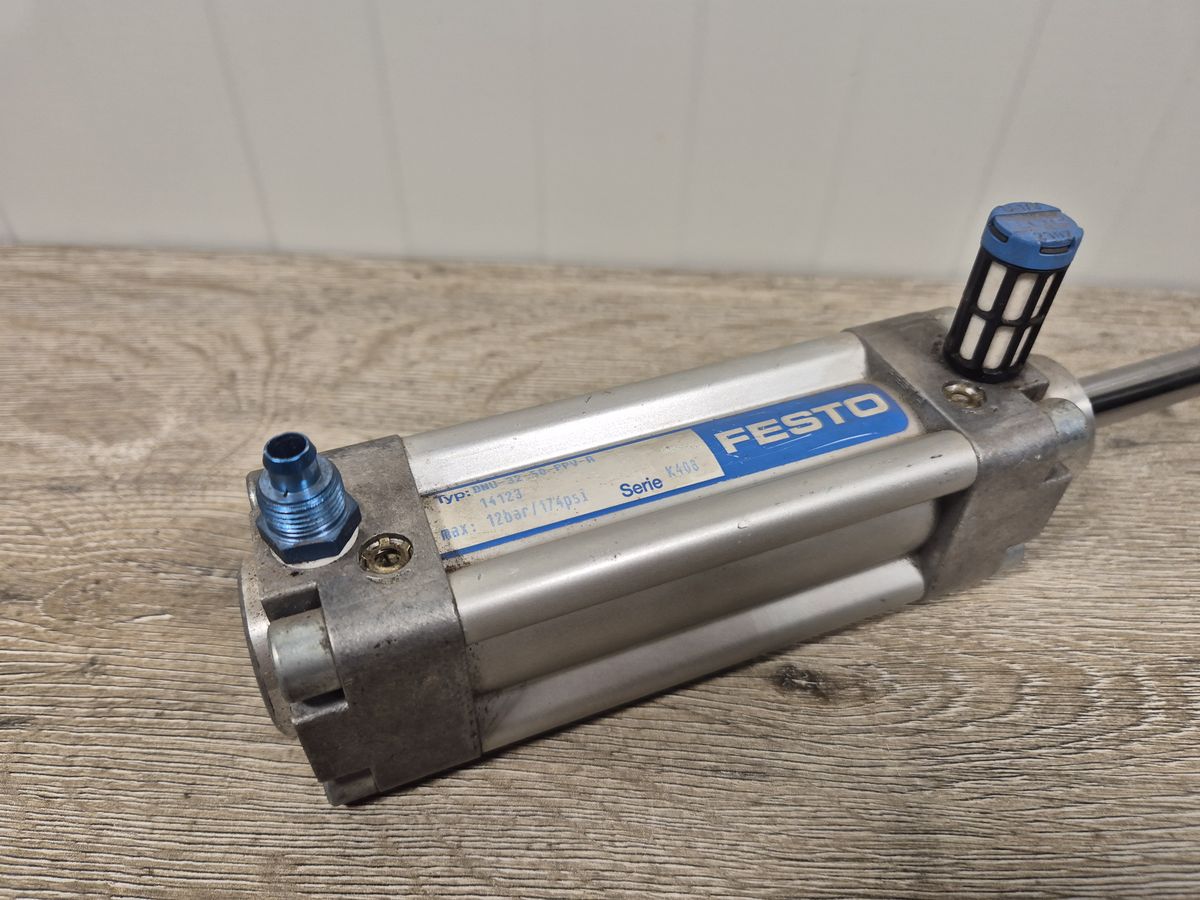

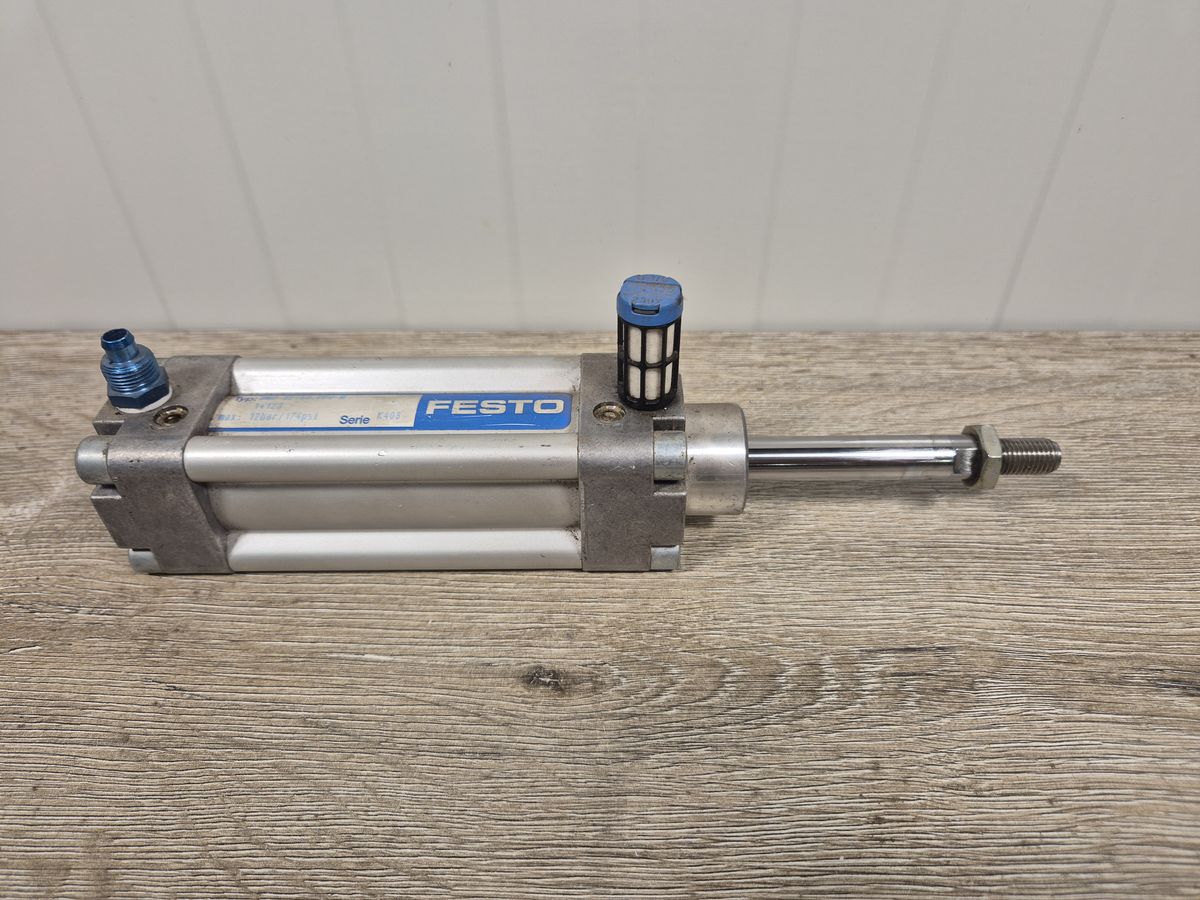

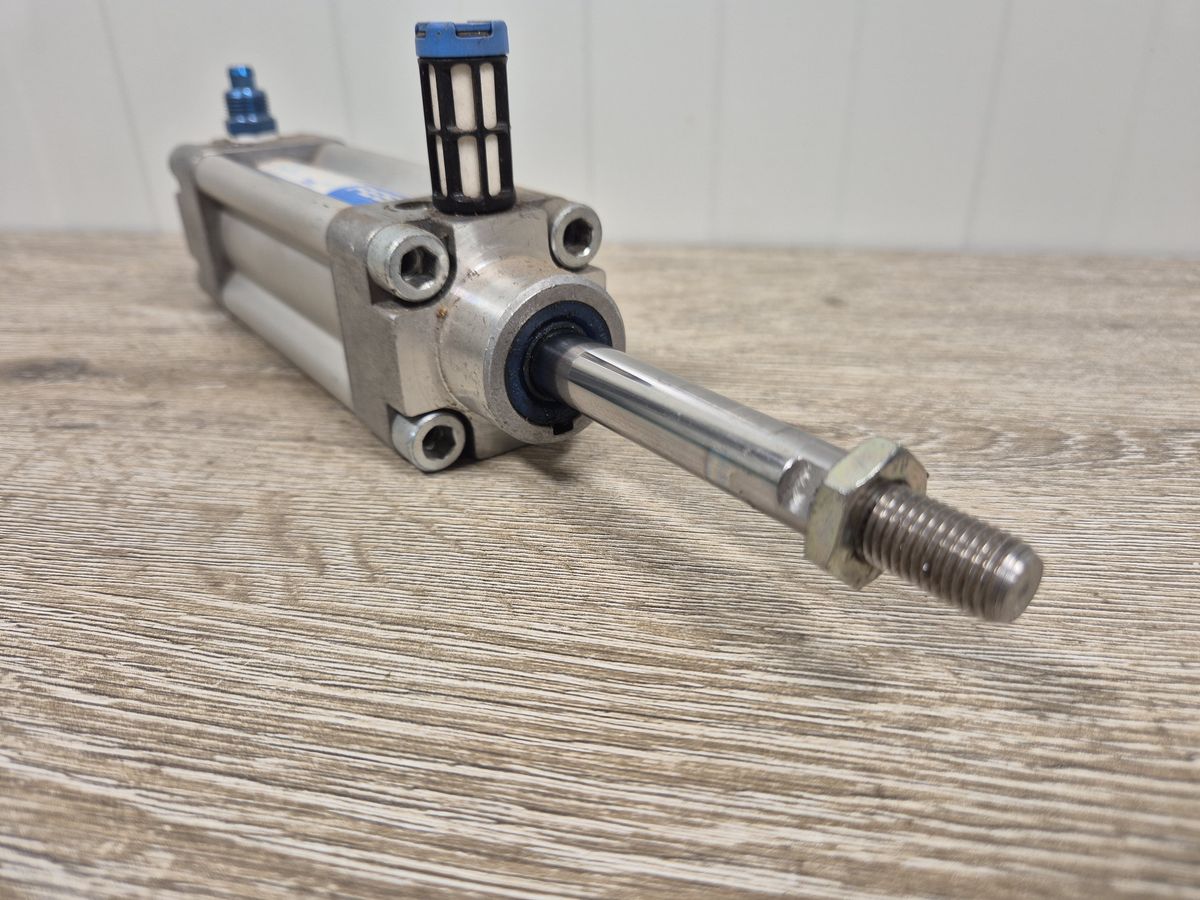

The Festo DNU-32-50-PPV-A is a double-acting standard pneumatic cylinder with a 32 mm bore and a 50 mm stroke. It features adjustable pneumatic cushioning at both ends (PPV) and contactless position sensing capability via integrated magnets (A). It is rated for industrial automation applications with operating pressures up to 12 bar (174 psi).

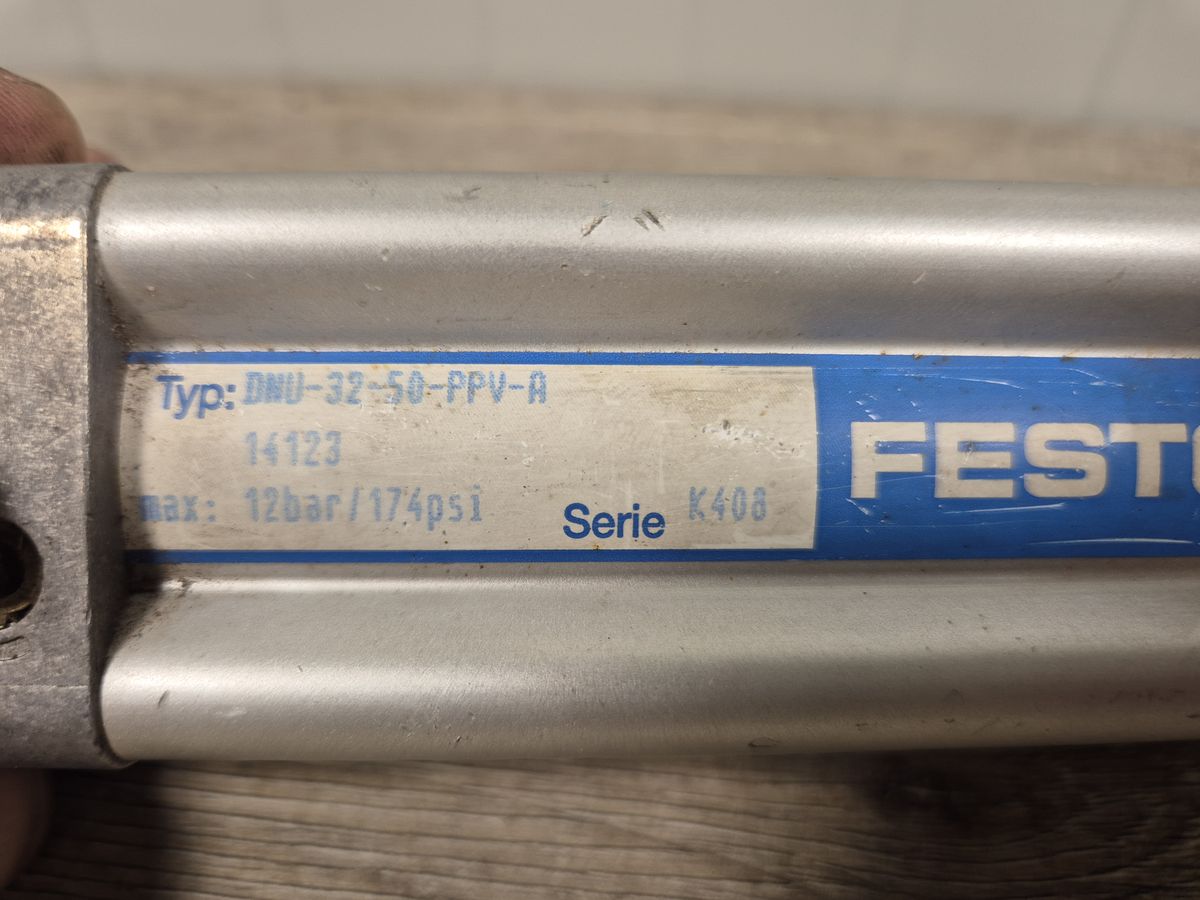

Specifications – DNU-32-50-PPV-A

Parameter	Specification
Part number	14123
Piston diameter	32 mm
Stroke length	50 mm
Max. pressure	12 bar / 174 psi
Series code	K408
