Reguladores
Proportion-Air QPV1TBNISZP10BRGAXL
SKU: 8043
Em Estoque
Informações sobre Garantia
Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

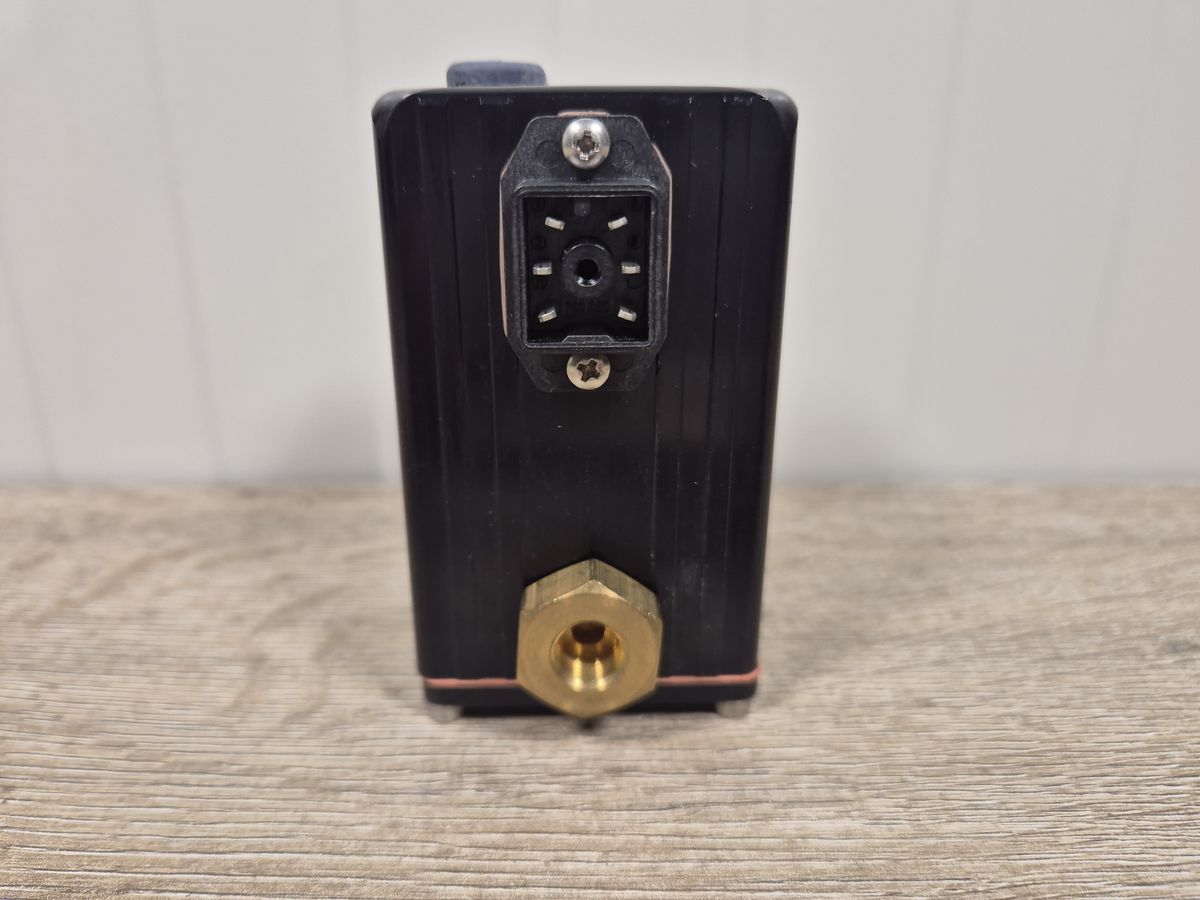

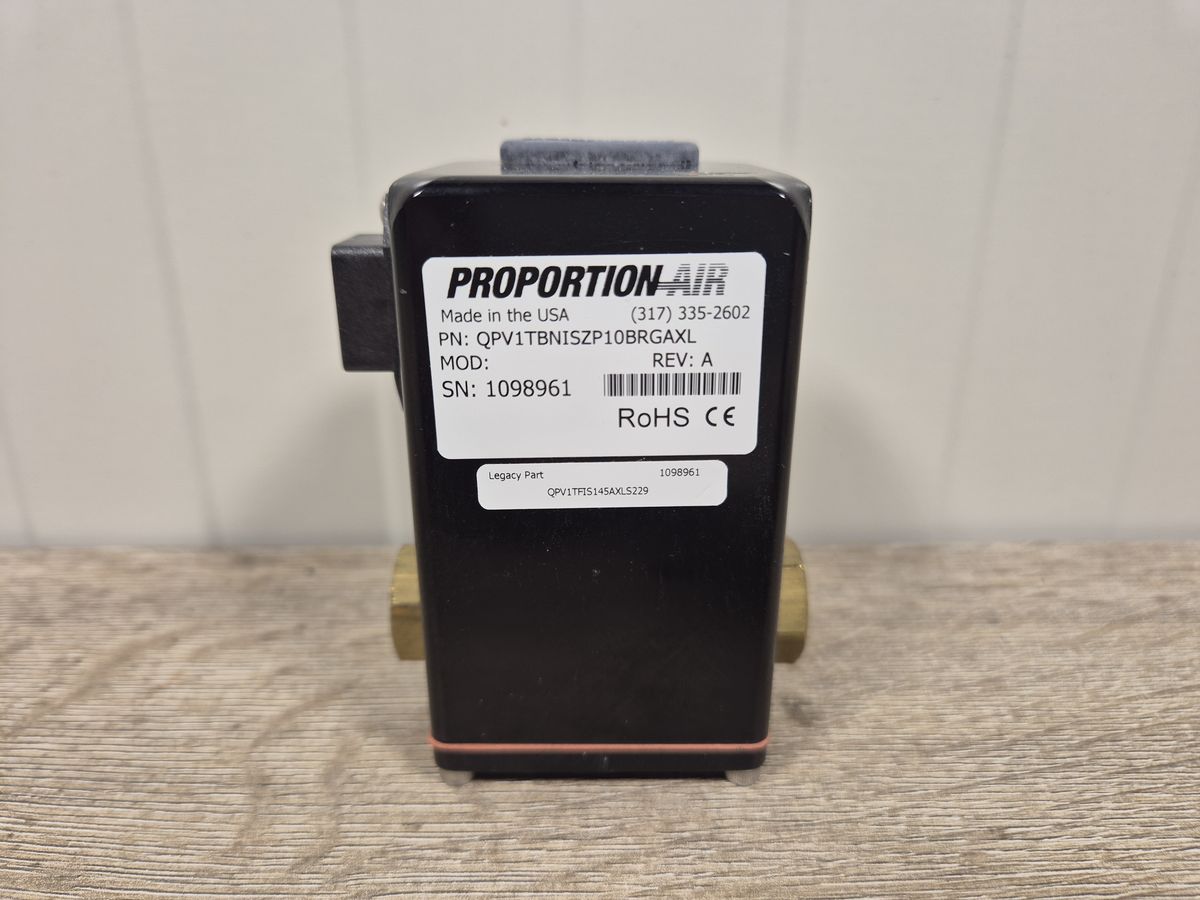

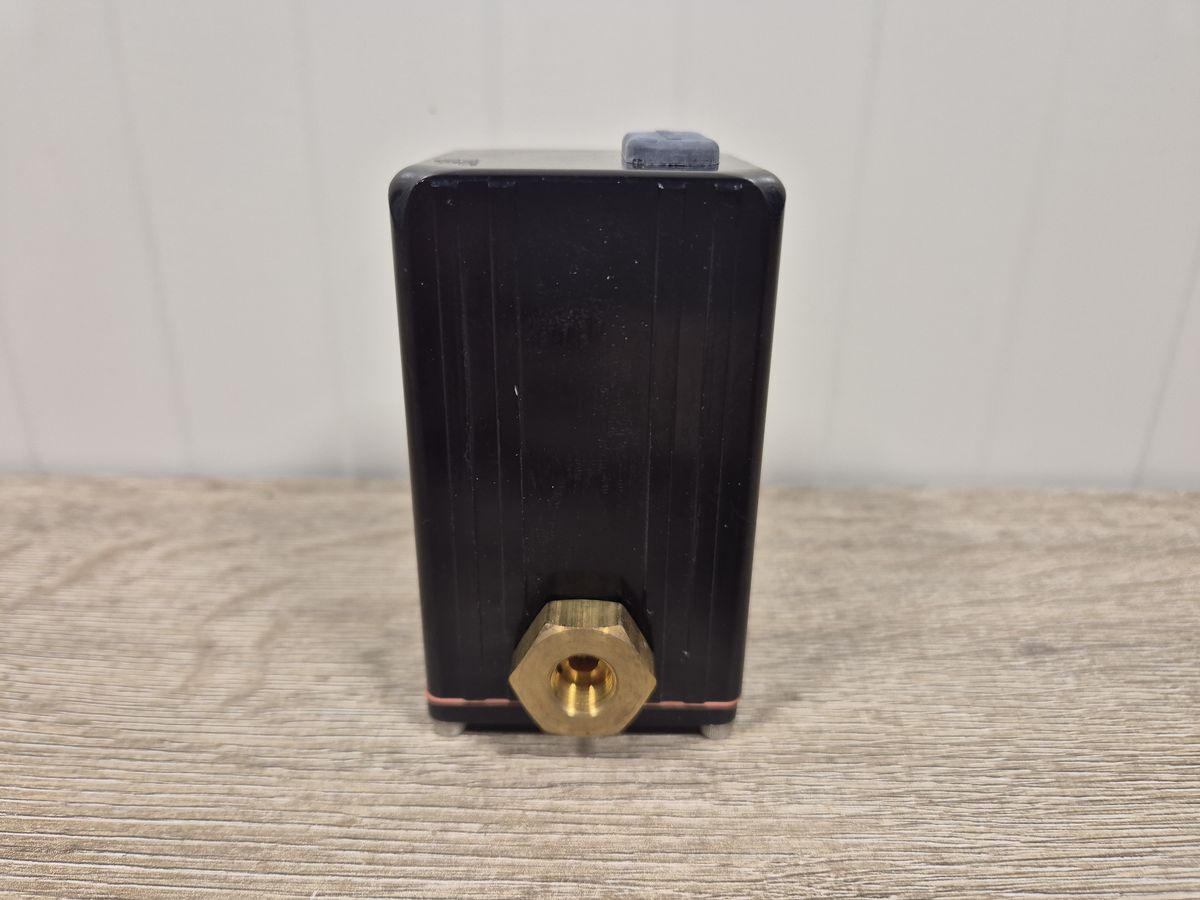

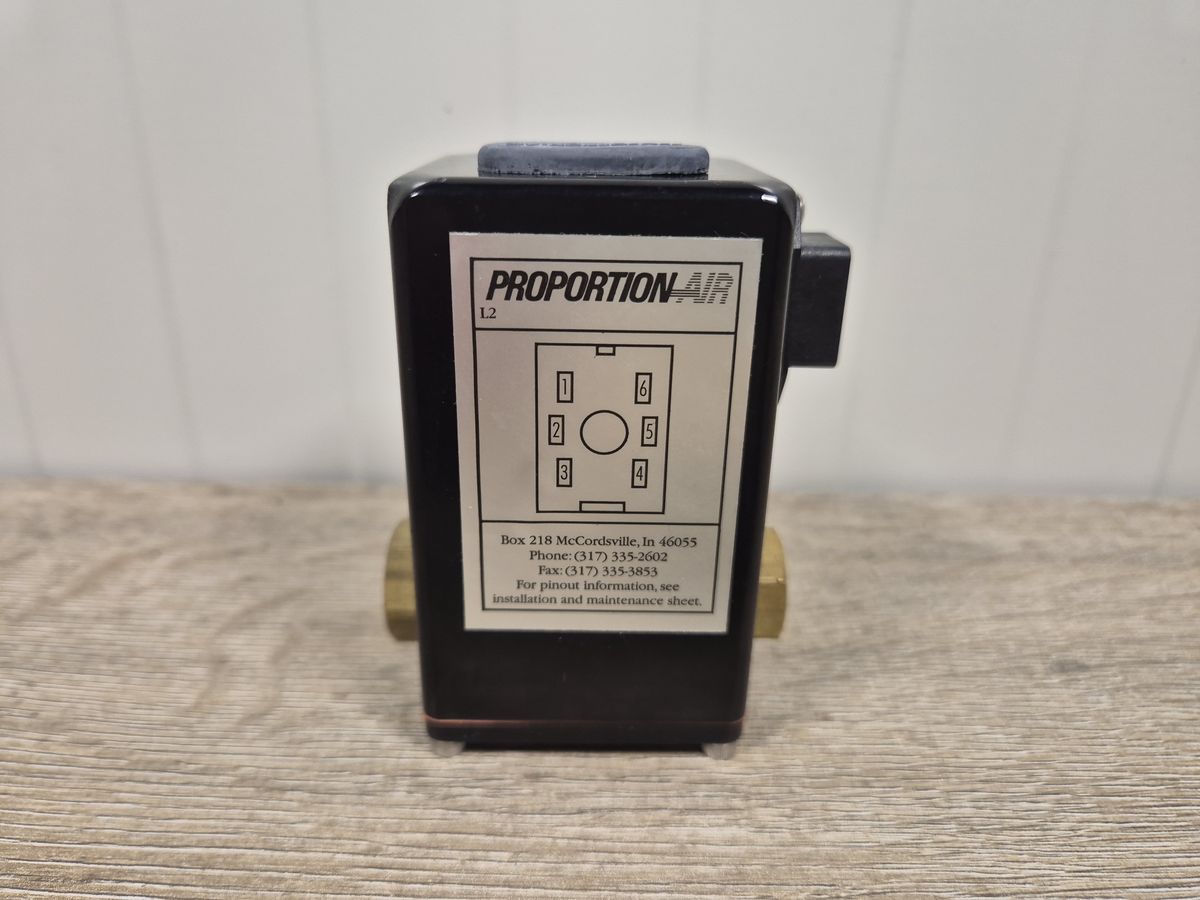

The Proportion-Air QPV1 is an ultra-high resolution electro-pneumatic closed-loop proportional pressure regulator. It utilizes a true proportional variable orifice inlet valve and an exhaust solenoid to achieve precise, continuous pressure control without digital stepping. Designed for demanding applications such as leak testing, dispensing, and microfluidics, it accepts electrical command signals and provides an integrated analog monitor output.
Specifications – QPV1TBNISZP10BRGAXL
| Parameter | Specification |
|---|---|
| Part Number | QPV1TBNISZP10BRGAXL |
| Legacy Part Number | QPV1TFIS145AXLS229 |
| Revision | A |
| Pressure Range | 0 - 10 bar gauge |
| Country of Manufacture | USA |
| Certifications | CE, RoHS |
×
![]()
